WSD40120DN56G Datasheet, Mosfet, Winsok

WSD40120DN56G Features

  • Mosfet Low RDS(on) & FOM Extremely low switching loss Excellent stability and uniformity or Invertors WSD40120DN56G N-Ch MOSFET Product Summery BVDSS 40V RDSON 1.8mΩ ID 120A Applications

PDF File Details

Part number:

WSD40120DN56G

Manufacturer:

Winsok

File Size:

1.08MB

Download:

📄 Datasheet

Description:

N-ch mosfet. The WSD40120DN use advanced SGT MOSFET technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche cha

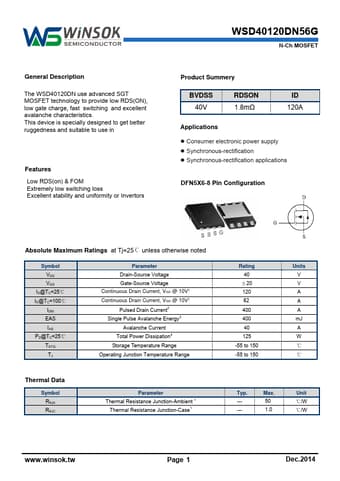

Datasheet Preview: WSD40120DN56G 📥 Download PDF (1.08MB)
Page 2 of WSD40120DN56G Page 3 of WSD40120DN56G

WSD40120DN56G Application

  • Applications z Consumer electronic power supply z Synchronous-rectification z Synchronous-rectification applications DFN5X6-8 Pin Configuration Ab
