WSD100N06GDN56 Datasheet - Winsok

WSD100N06GDN56 N-Channel MOSFET

The WSD100N06GDN56 is the SGT MOSFET with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the synchronous buck converter applications. The WSD100N06GDN56 meet the RoHS and Green Product requirement 100% EAS guaranteed with full function reliability approved. Fe.

WSD100N06GDN56 Features

* Lead Free and Green Devices Available (RoHS Compliant)

* 100% UIS + Rg Tested

* Reliable and Rugged

* Moisture Sensitivity Level MSL1 (per JEDEC J-STD-020D) WSD100N06GDN56 N-Channel MOSFET Product Summery BVDSS 60V RDS(ON) 3.0mΩ ID 100A Applications

* Secondary Side Synch

WSD100N06GDN56-Winsok.pdf

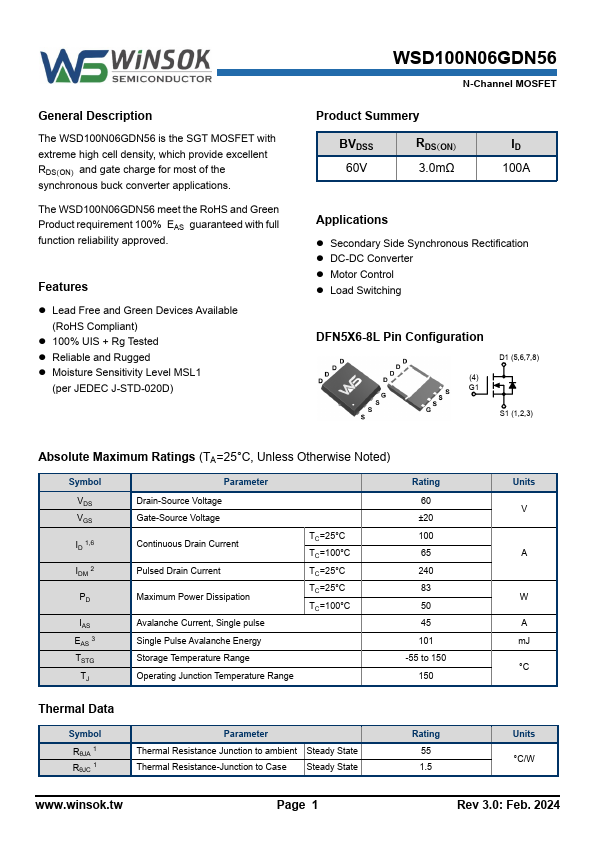

Preview of WSD100N06GDN56 PDF

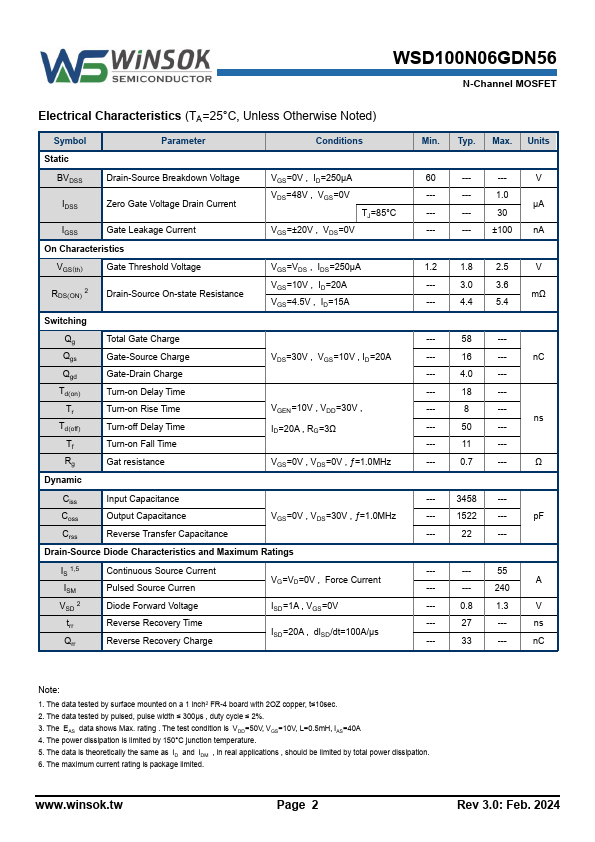

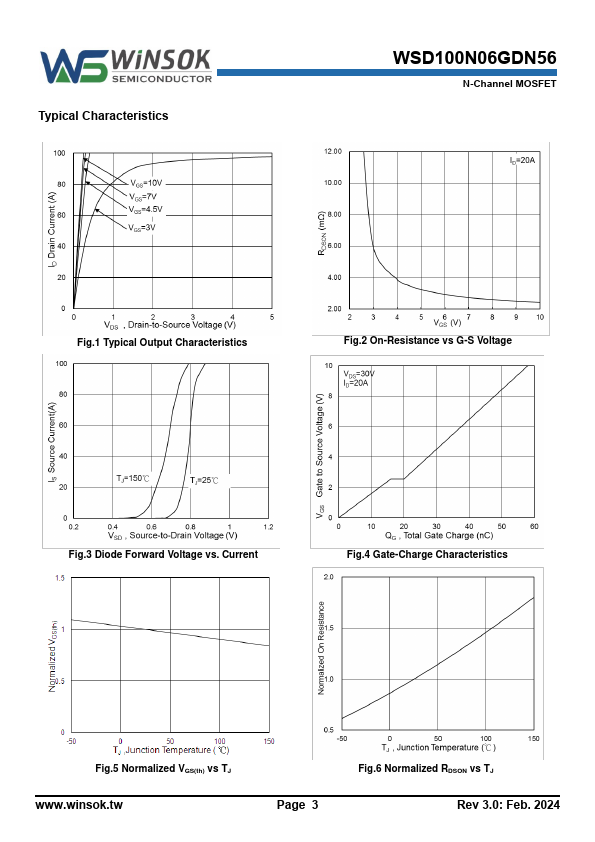

WSD100N06GDN56 Datasheet Preview Page 2 WSD100N06GDN56 Datasheet Preview Page 3

Datasheet Details

Part number:

WSD100N06GDN56

Manufacturer:

Winsok

File Size:

937.37 KB

Description:

N-channel mosfet.

WSD100N06GDN56 Distributor
