WSD40L60DN56 - P-Channel MOSFET

Winsok

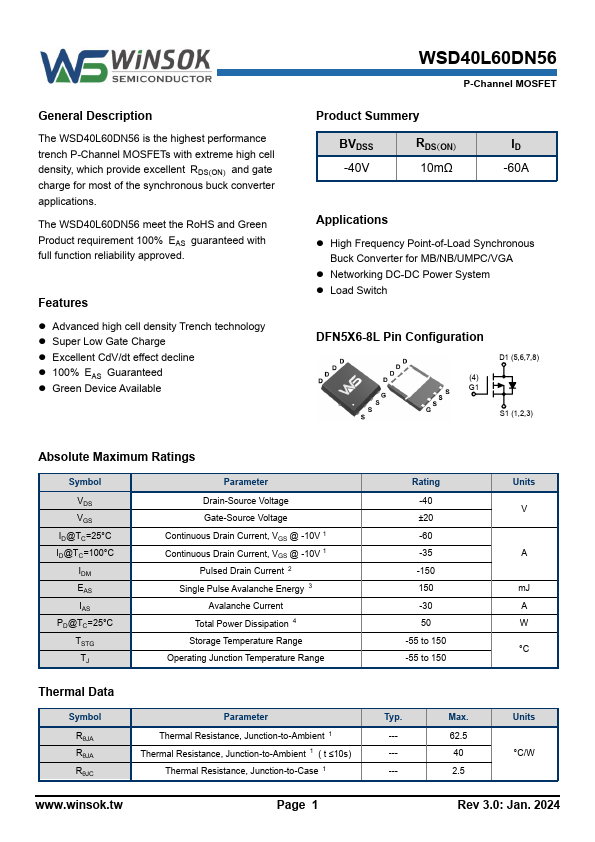

WSD40L60DN56 Datasheet Preview — Preview of WSD40L60DN56 PDF

Datasheet Details

Part number	WSD40L60DN56
Manufacturer	Winsok
File Size	573.15 KB
Description	P-Channel MOSFET
Datasheet	WSD40L60DN56-Winsok.pdf

WSD40L60DN56 Product details

Description

The WSD40L60DN56 is the highest performance trench P-Channel MOSFETs with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the synchronous buck converter applications.

Features

Advanced high cell density Trench technology.
Super Low Gate Charge.
Excellent CdV/dt effect decline.
100% EAS Guaranteed.
Green Device Available WSD40L60DN56 P-Channel MOSFET Product Summery BVDSS -40V RDS(ON) 10mΩ ID -60A.
