WSD4018DN22 Datasheet - Winsok

WSD4018DN22 P-Channel MOSFET

The WSD4018DN22 is the highest performance trench P-Channel MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the small power switching and load switch applications. The WSD4018DN22 meet the RoHS and Green Product requirement with full function reliabi.

WSD4018DN22 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available WSD4018DN22 P-Channel MOSFET Product Summery BVDSS -40V RDSON 26mΩ ID -18A Applications z High Frequency Point-of-Load Synchronous Small power switching for MB/NB/U

WSD4018DN22 Datasheet (1.48 MB)

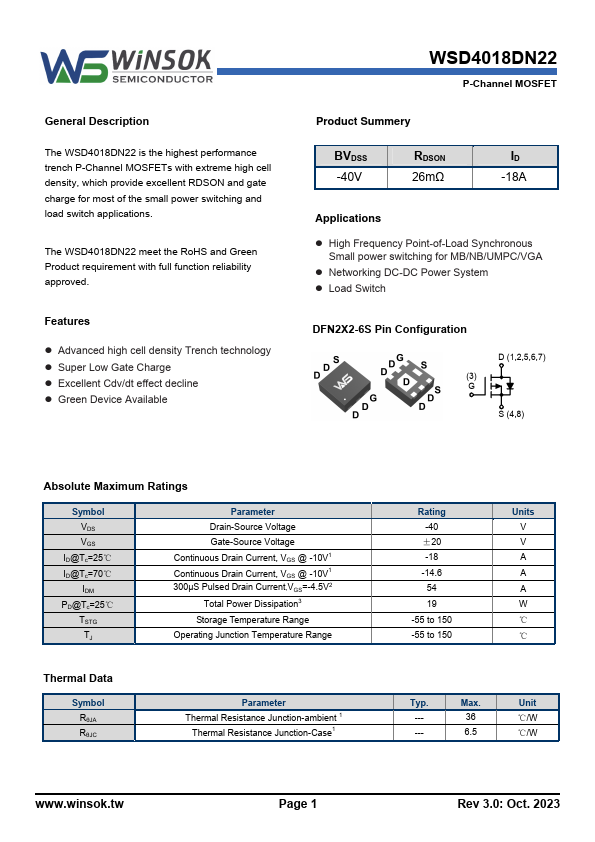

Preview of WSD4018DN22 PDF

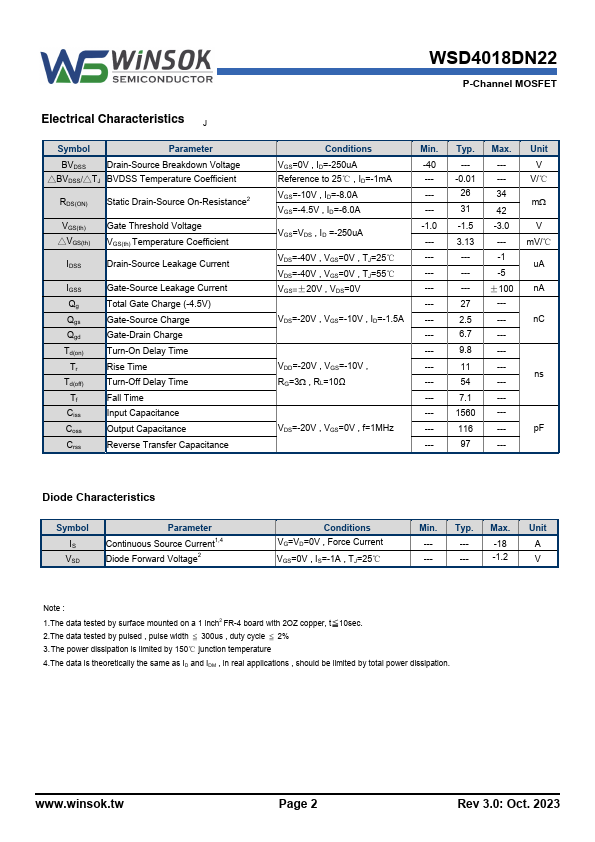

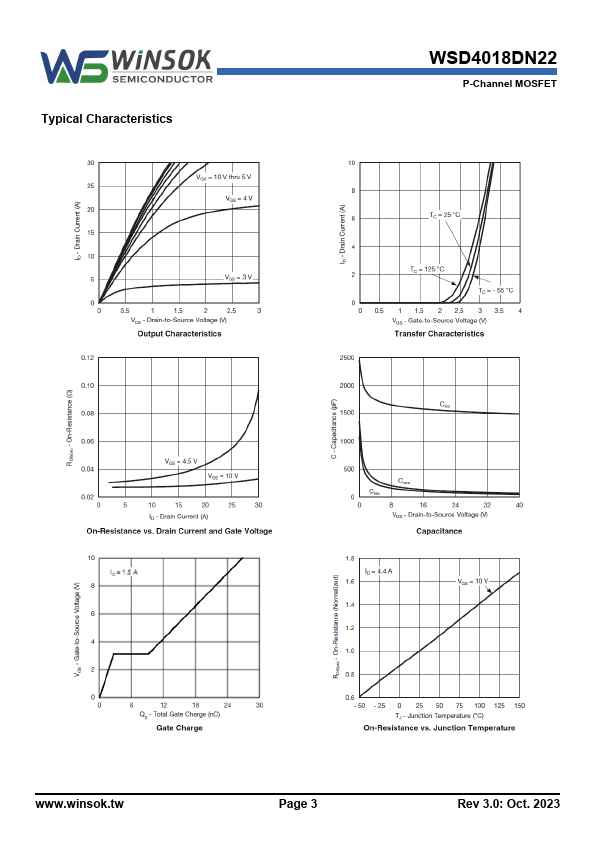

WSD4018DN22 Datasheet Preview Page 2 WSD4018DN22 Datasheet Preview Page 3

Datasheet Details

Part number:

WSD4018DN22

Manufacturer:

Winsok

File Size:

1.48 MB

Description:

P-channel mosfet.
