C3M0900170D, 1700V N-Channel Enhancement Mode Power MOSFET

C3M0900170D 1700V 900mΩ Silicon Carbide Power MOSFET N-Channel Enhancement Mode .

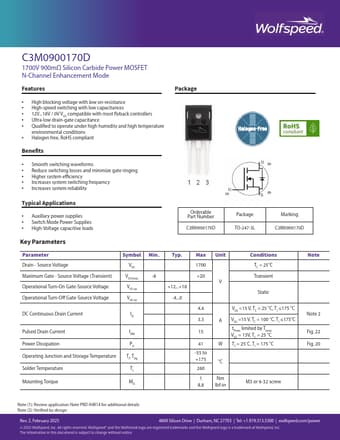

datasheet Preview Page 1 from Datasheet4u.com

C3M0900170D-Wolfspeed.pdf

C3M0900170D Datasheet Preview — Preview of C3M0900170D PDF

Datasheet Details

Part number:

C3M0900170D

Manufacturer:

Wolfspeed

File Size:

865.02 KB

Description:

1700V N-Channel Enhancement Mode Power MOSFET

Features

* High blocking voltage with low on-resistance
* High-speed switching with low capacitances
* 12V18V / 0V VGS compatible with most flyback controllers Ultra-low drain-gate capacitance
* Qualified to operate under high humidity and high temperature envi

Applications

* Auxillary power supplies
* Switch Mode Power Supplies
* High-Voltage capacitive loads Orderable Part Number C3M0900170D Package TO-247-3L Marking C3M0900170D Key Parameters Parameter Drain - Source Voltage Maximum Gate - Source Voltage (Transient) Operational Turn-On G
