CMPA0060002F Datasheet, Amplifier, Wolfspeed

CMPA0060002F Features

  • Amplifier
  • 17 dB Small Signal Gain
  • 3 W Typical PSAT
  • Operation up to 28 V
  • High Breakdown Voltage
  • High Temperature Operation
  • 0.5” x 0.5” t

PDF File Details

Part number:

CMPA0060002F

Manufacturer:

Wolfspeed

File Size:

2.21MB

Download:

📄 Datasheet

Description:

Gan mmic power amplifier. Wolfspeed’s CMPA0060002F is a gallium nitride (GaN) High Electron Mobility Transistor (HEMT) based monolithic microwave integrated ci

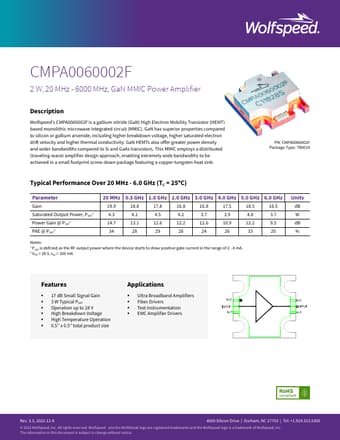

Datasheet Preview: CMPA0060002F 📥 Download PDF (2.21MB)
Page 2 of CMPA0060002F Page 3 of CMPA0060002F

CMPA0060002F Application

  • Applications
  • Ultra Broadband Amplifiers
  • Fiber Drivers
  • Test Instrumentation
  • EMC Amplifier Drivers Rev. 3.3,
