XP10P135M P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP10P135M Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low Gate Charge D ▼ Fast Switching Characteristic ▼ Simple Drive Requirem.
XP10P135 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

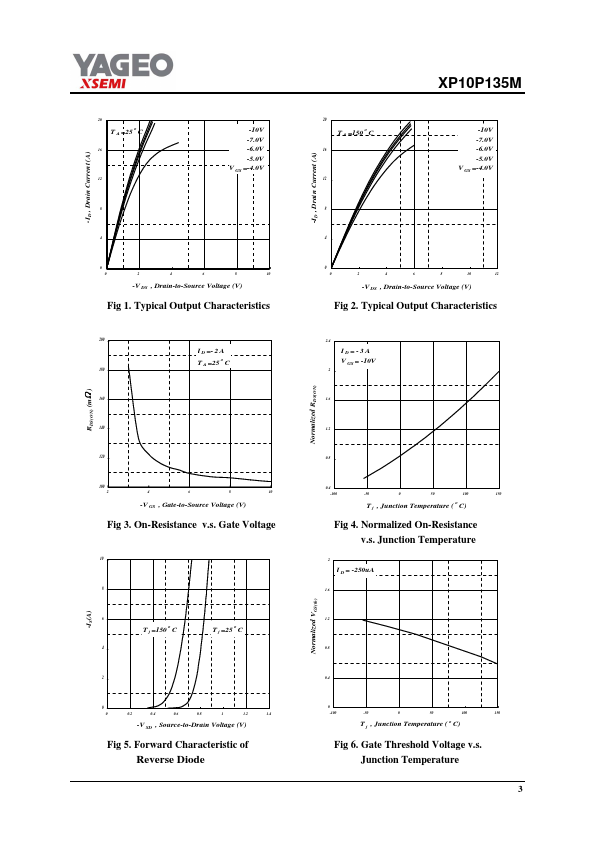

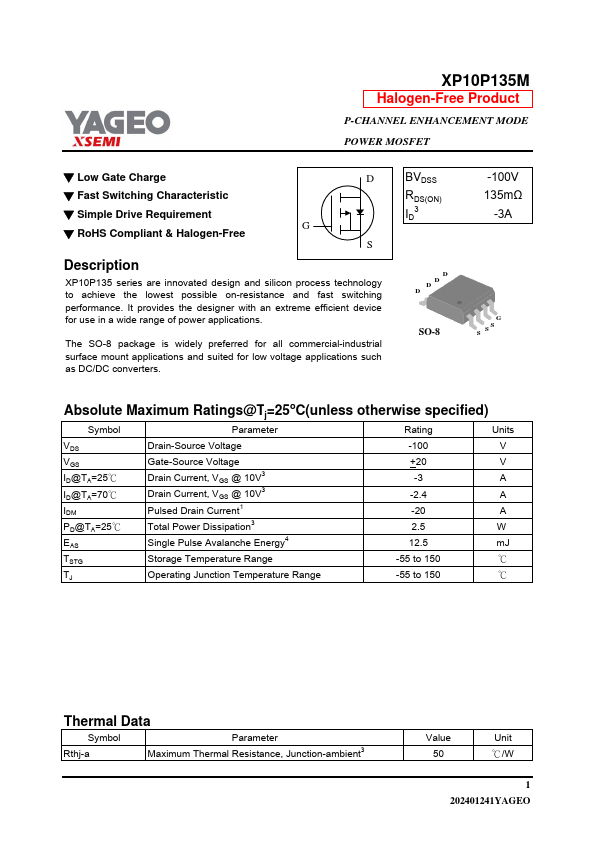

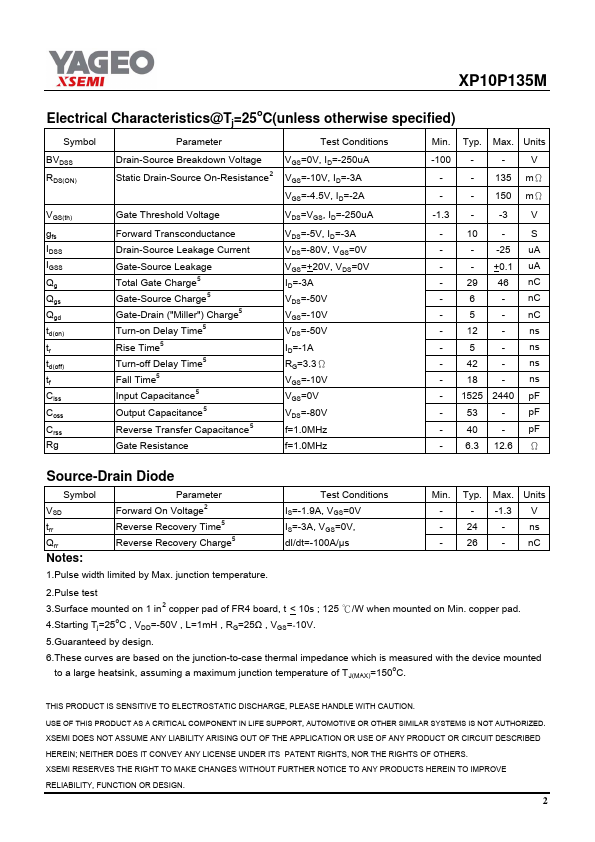

XP10P135M Datasheet Preview — Preview of XP10P135M PDF

Datasheet Specifications

Part number: XP10P135M
Manufacturer: YAGEO
File Size: 246.50 KB
Datasheet: XP10P135M-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3 D D D D SO-8 -100V 135mΩ -3A G S SS Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter
