XP10P500N P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP10P500N Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Small Package Outline ▼ Surface Mount Device ▼.
XP10P500 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

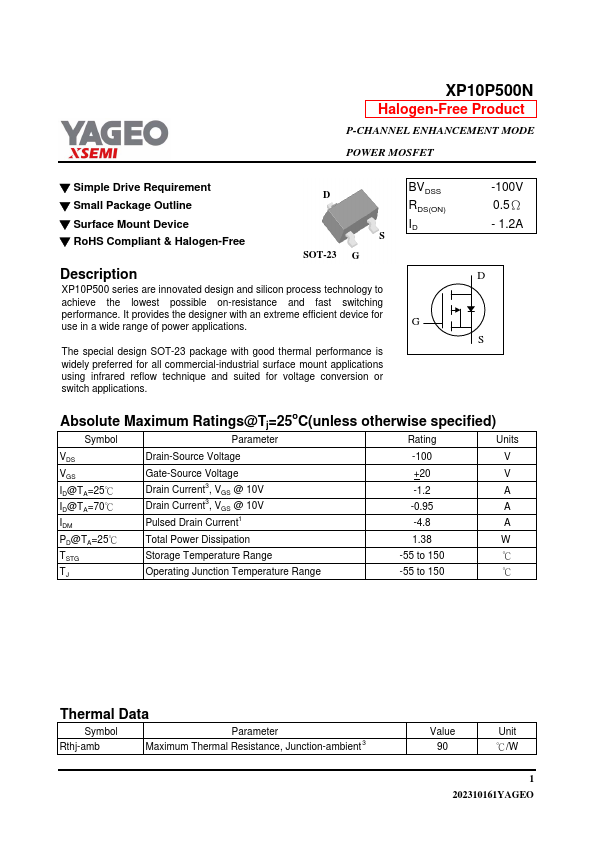

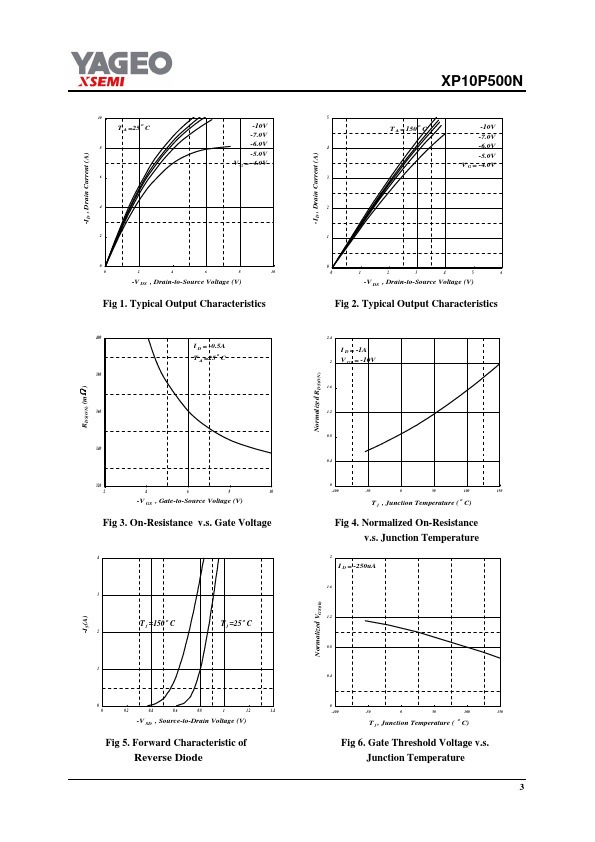

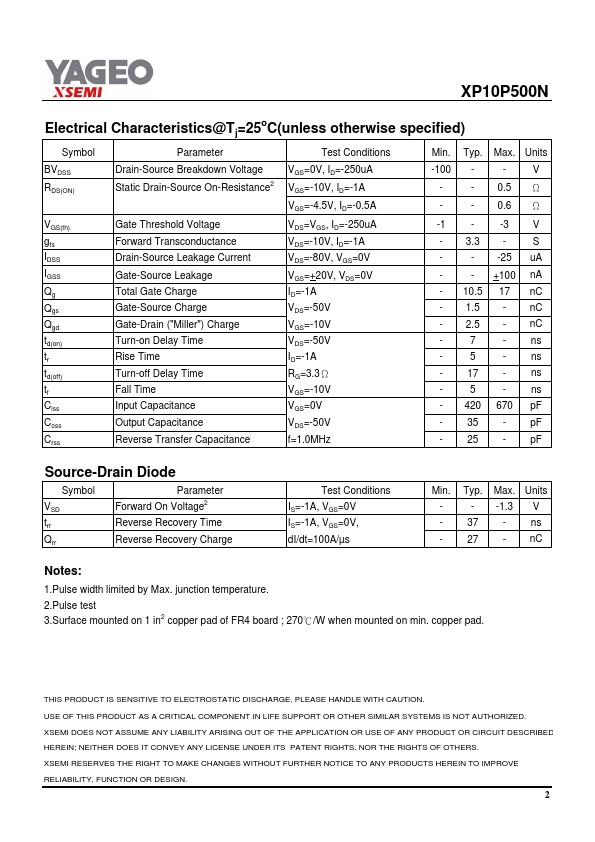

XP10P500N Datasheet Preview — Preview of XP10P500N PDF

Datasheet Specifications

Part number: XP10P500N
Manufacturer: YAGEO
File Size: 150.75 KB
Datasheet: XP10P500N-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The special design SOT-23 package with good thermal performance is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID G -100V 0.5Ω - 1.2A D S Absolute Maximum Rating
