XP10TN135K N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

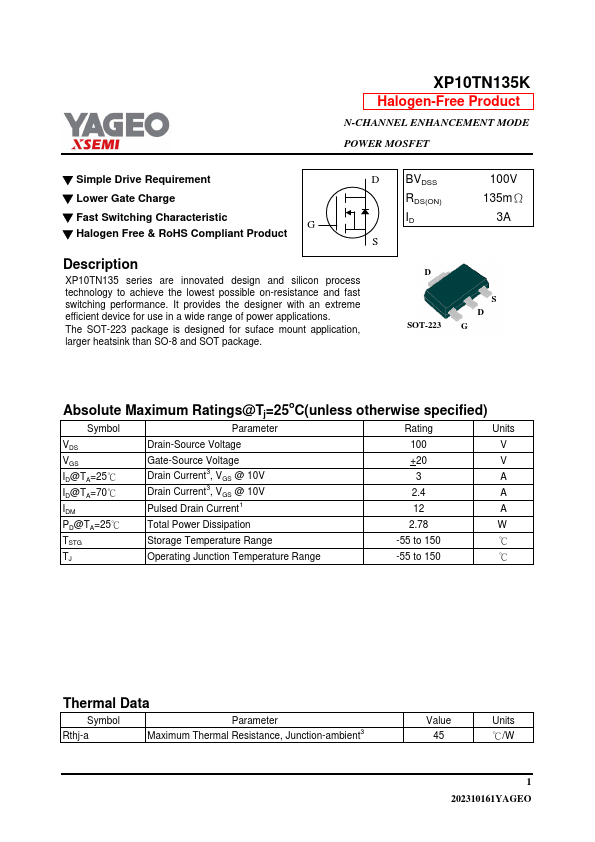

XP10TN135K Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Lower Gate Charge ▼ Fast Switching Characte.
XP10TN135 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

XP10TN135K Datasheet Preview — Preview of XP10TN135K PDF

Datasheet Specifications

Part number: XP10TN135K
Manufacturer: YAGEO
File Size: 154.27 KB
Datasheet: XP10TN135K-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-223 package is designed for suface mount application, larger heatsink than SO-8 and SOT package. BVDSS RDS(ON) ID 100V 135mΩ 3A D SOT-223 S D G Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TST
