XP10TN135N N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP10TN135N Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Fast Switching Characteristic ▼ Low Gate Char.
XP10TN135 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

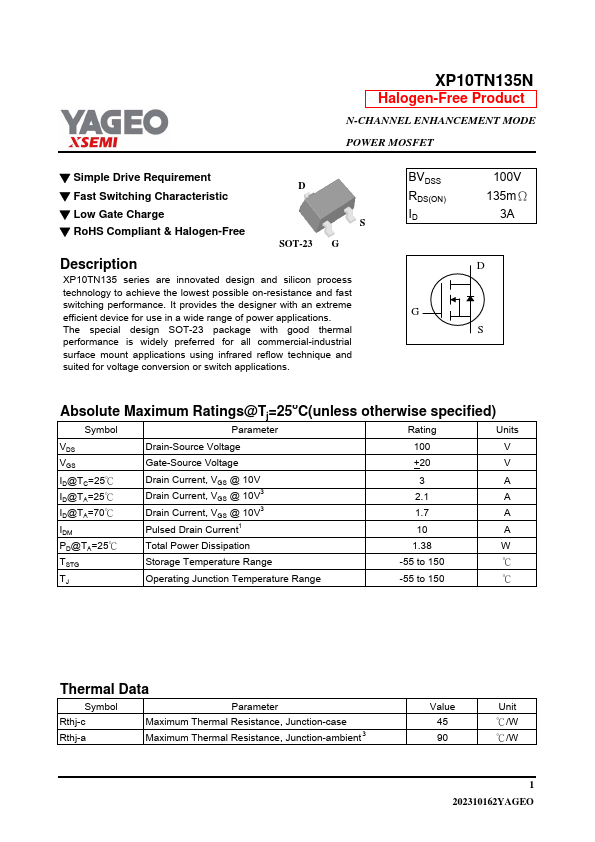

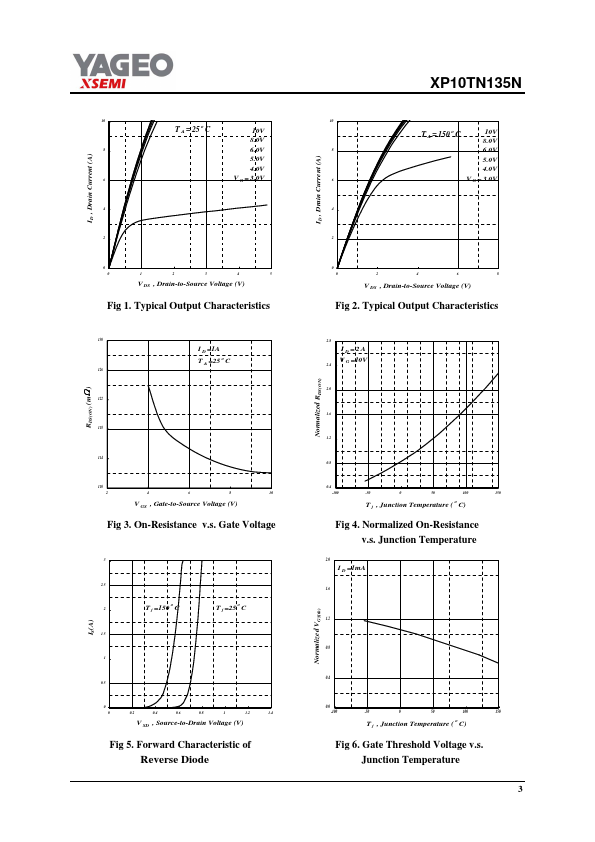

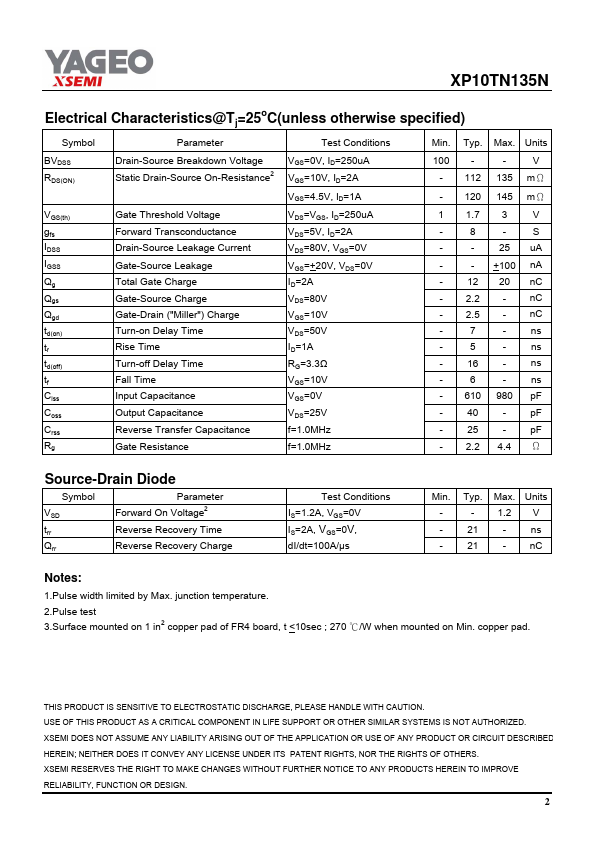

XP10TN135N Datasheet Preview — Preview of XP10TN135N PDF

Datasheet Specifications

Part number: XP10TN135N
Manufacturer: YAGEO
File Size: 189.06 KB
Datasheet: XP10TN135N-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The special design SOT-23 package with good thermal performance is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID 100V 135mΩ 3A D G S Absolute Maximum Ratings@Tj
