XP15NA7R4CDT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP15NA7R4CDT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test ▼ Simple Drive Requirement ▼ Low On-resistance ▼ RoH.
XP15NA7R4C series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

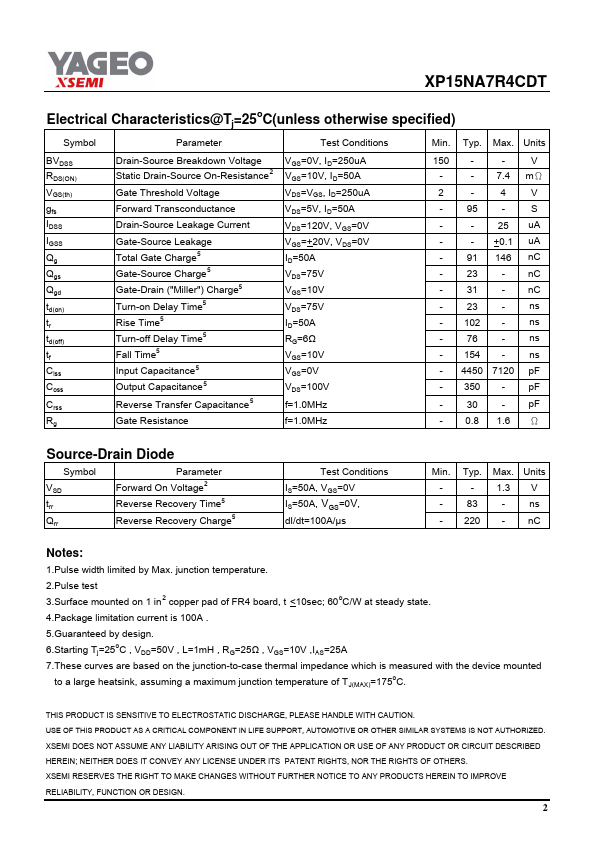

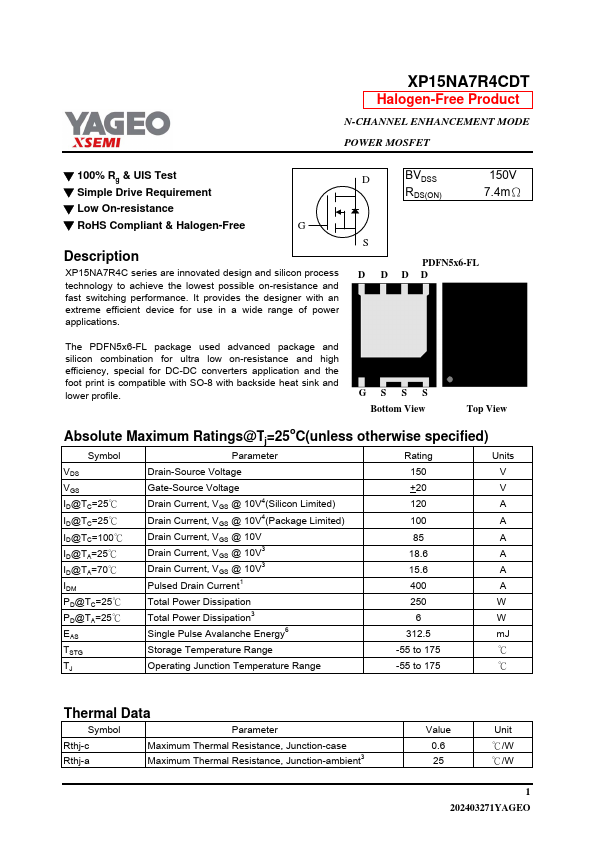

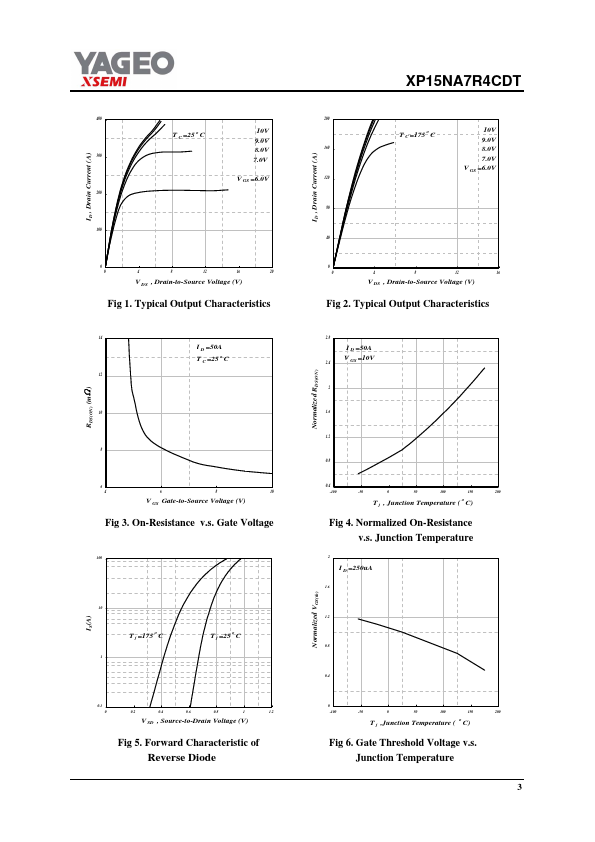

XP15NA7R4CDT Datasheet Preview — Preview of XP15NA7R4CDT PDF

Datasheet Specifications

Part number: XP15NA7R4CDT
Manufacturer: YAGEO
File Size: 254.10 KB
Datasheet: XP15NA7R4CDT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* D BVDSS RDS(ON) 150V 7.4mΩ S PDFN5x6-FL D D DD The PDFN5x6-FL package used advanced package and silicon combination for ultra low on-resistance and high efficiency, special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile.
