XP3D5R0MT DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

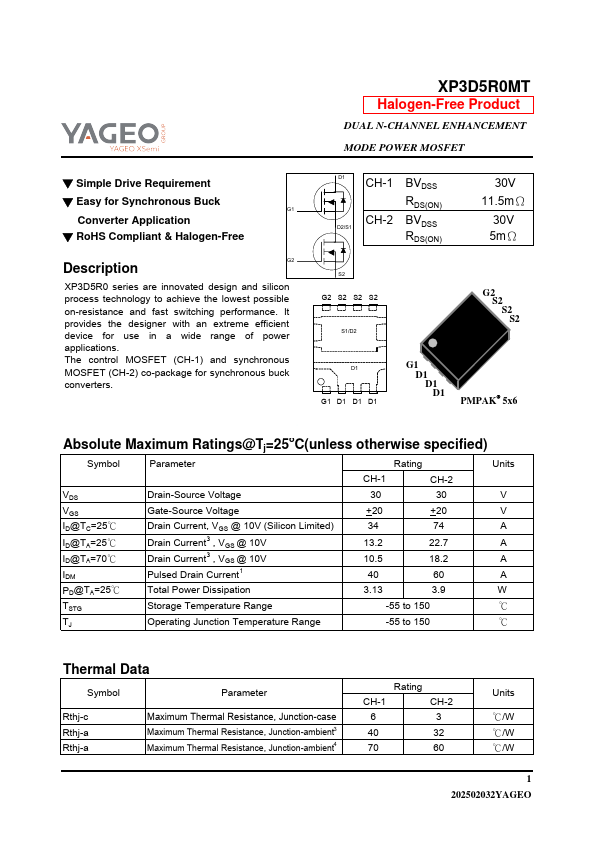

📥 Download Datasheet Datasheet Preview Page 1

Description

XP3D5R0MT Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D1 CH-1 BVDSS 30V ▼ Easy for Synchronous Bu.
XP3D5R0 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP3D5R0MT PDF

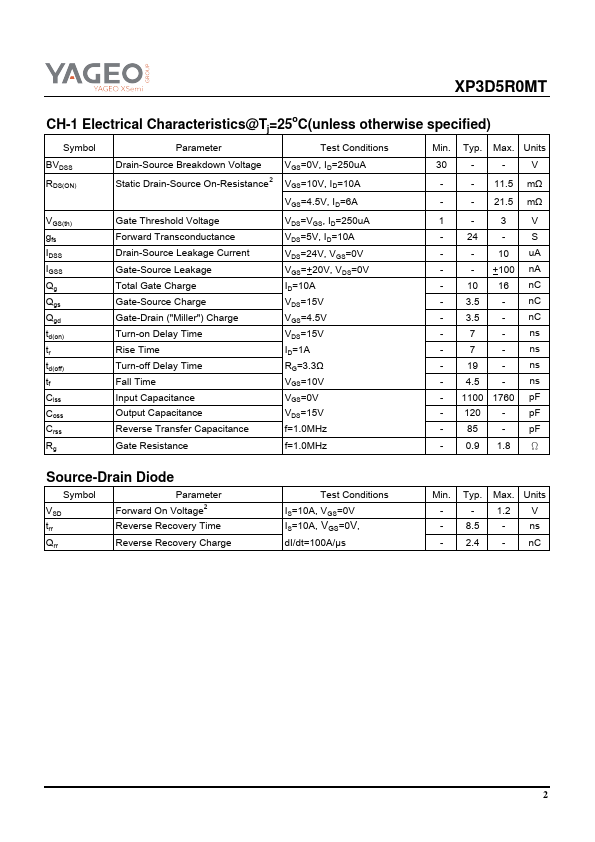

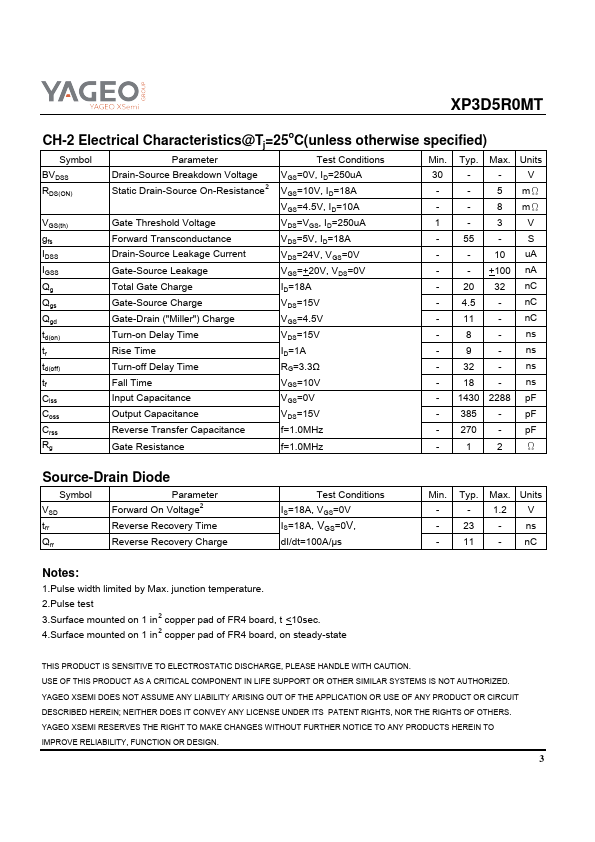

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP3D5R0MT
Manufacturer
YAGEO
File Size
802.23 KB
Datasheet
XP3D5R0MT-YAGEO.pdf
Description
DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The control MOSFET (CH-1) and synchronous MOSFET (CH-2) co-package for synchronous buck converters. S2 G2 S2 S2 S2 S1/D2 D1 G1 D1 D1 D1 G2 S2 S2 S2 G1 D1 D1 D1 PMPAK® 5x6 . Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units CH-1 CH-2 VDS Drain-S
