XP6C058YT N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6C058YT Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Good Thermal Performance D1 N-CH D2 ▼ F.
PMPAK® 3x3 P-CH XP6C058 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching.

📥 Download Datasheet

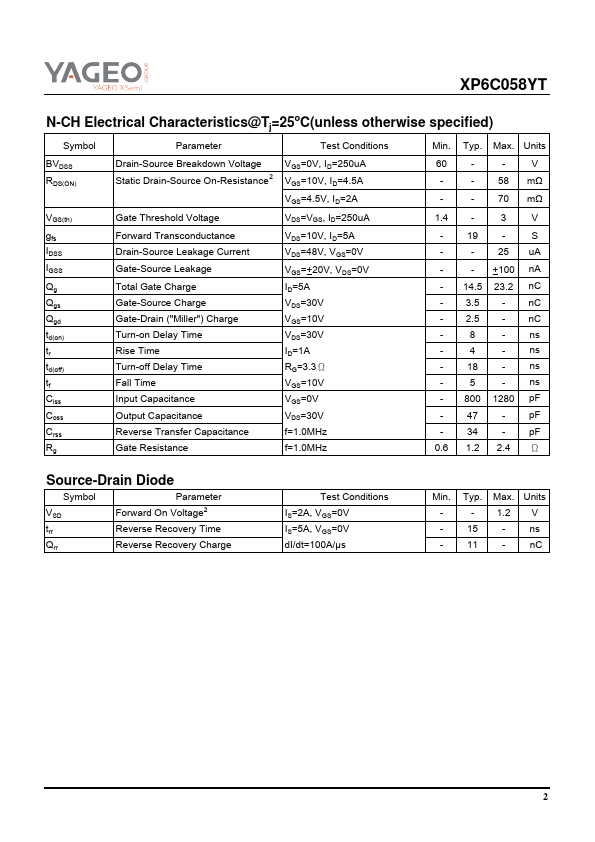

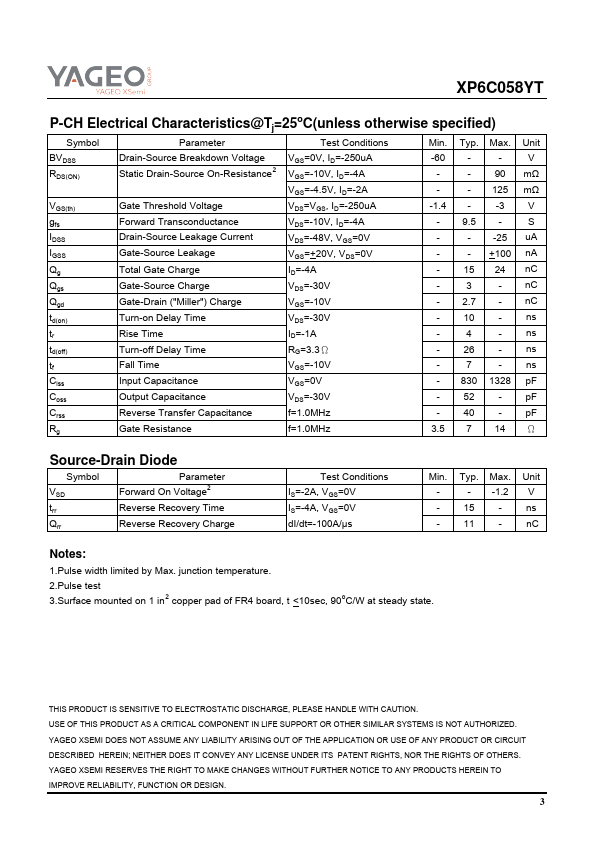

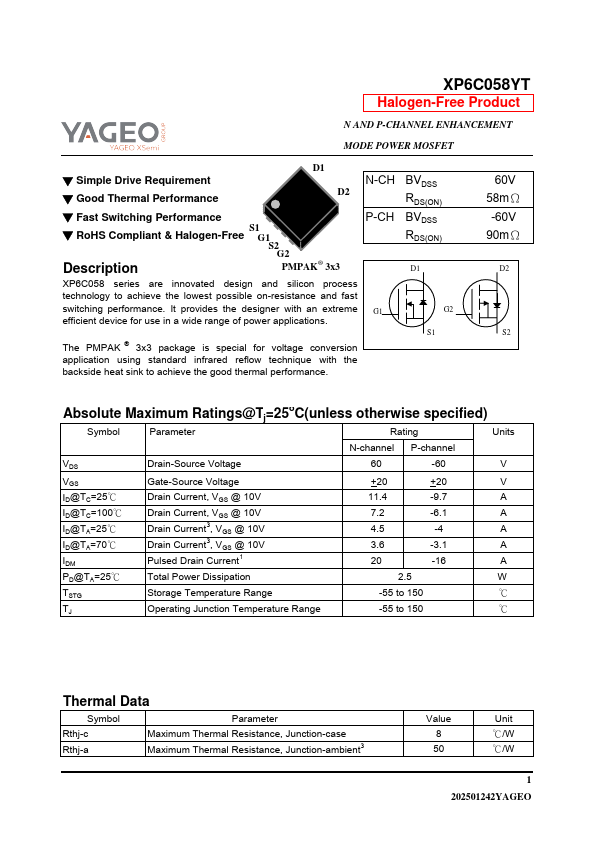

XP6C058YT Datasheet Preview — Preview of XP6C058YT PDF

Datasheet Specifications

Part number: XP6C058YT
Manufacturer: YAGEO
File Size: 775.00 KB
Datasheet: XP6C058YT-YAGEO.pdf
Description: N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 3x3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. BVDSS RDS(ON) BVDSS RDS(ON) D1 G2 S1 60V 58mΩ -60V 90mΩ D2 S2 Absolute Maximum Ratings@Tj=25oC. (unless otherwise s
