XP9985GM N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9985GM Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low On-Resistance ▼ Simple Drive Requirement ▼ Fast Switching Characteristic .
XP9985 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

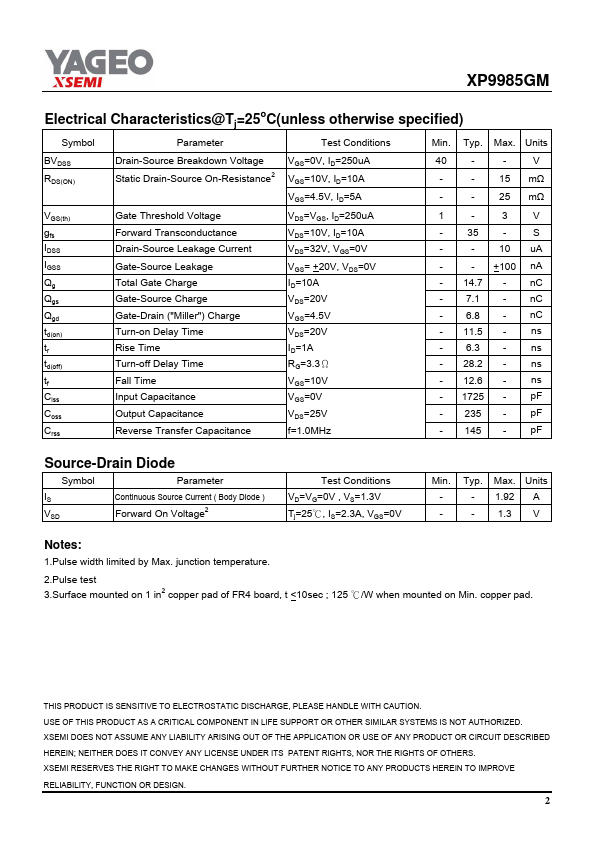

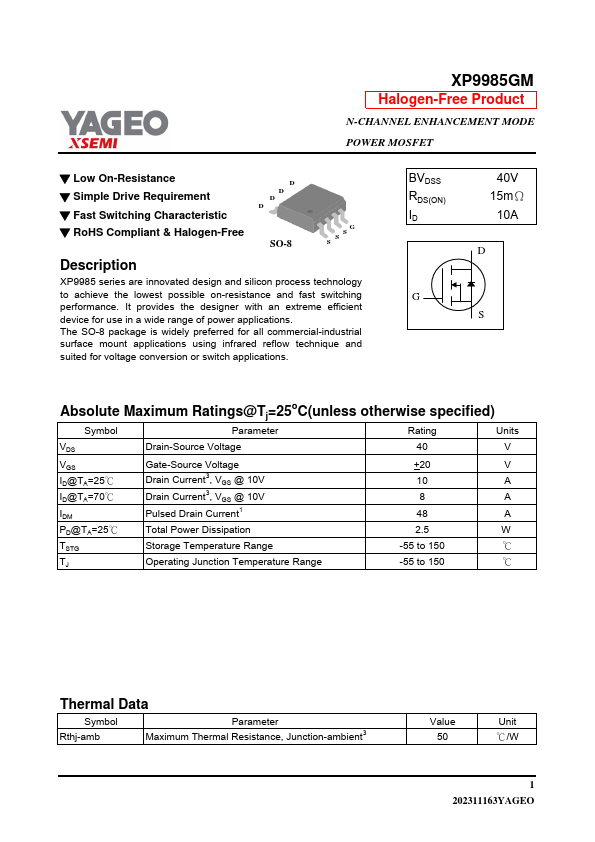

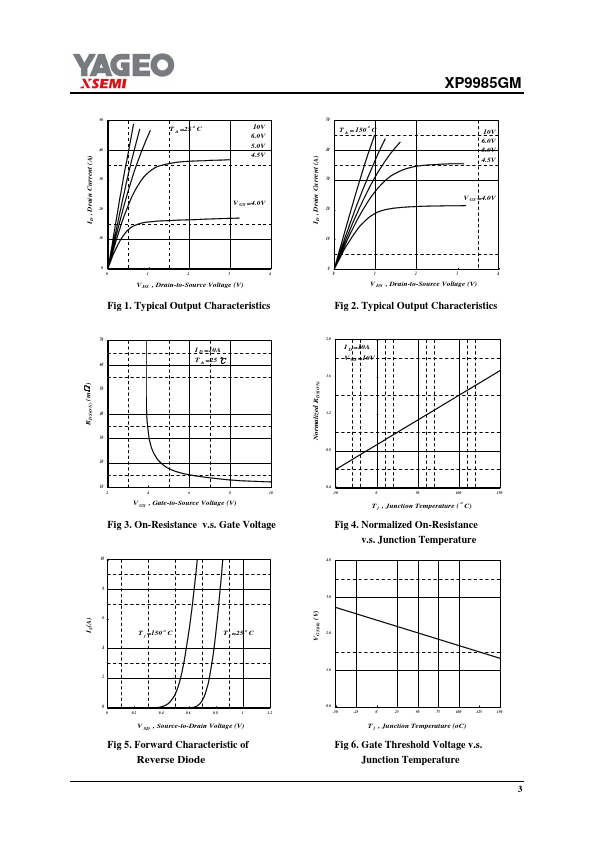

XP9985GM Datasheet Preview — Preview of XP9985GM PDF

Datasheet Specifications

Part number: XP9985GM
Manufacturer: YAGEO
File Size: 239.74 KB
Datasheet: XP9985GM-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID 40V 15mΩ 10A D G S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Param
