XP99T03GP N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP99T03GP Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Ultra-low On-resistance ▼ Fast Switching Cha.
XP99T03 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

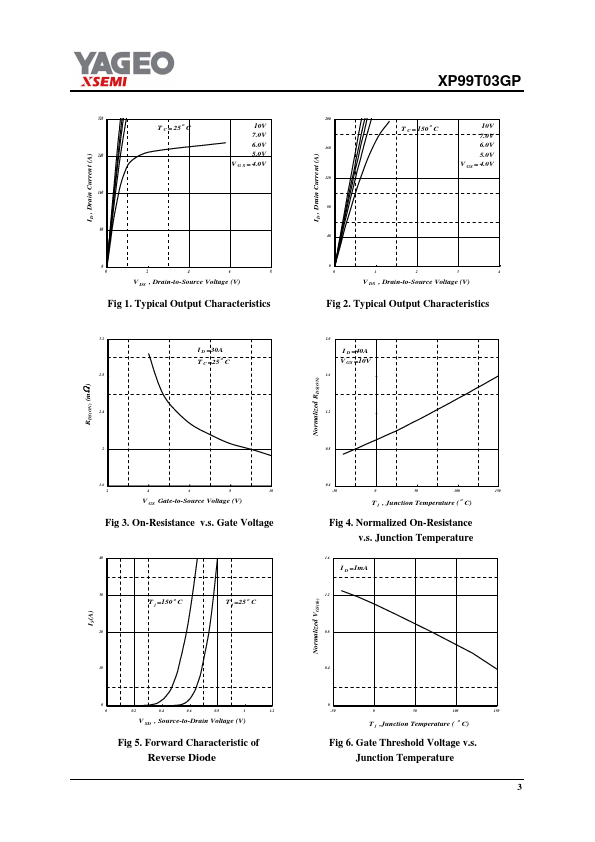

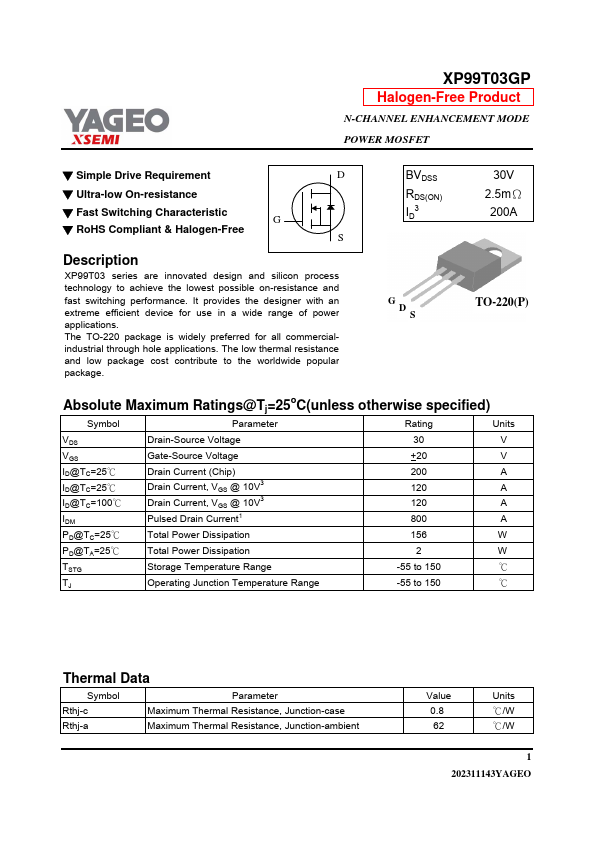

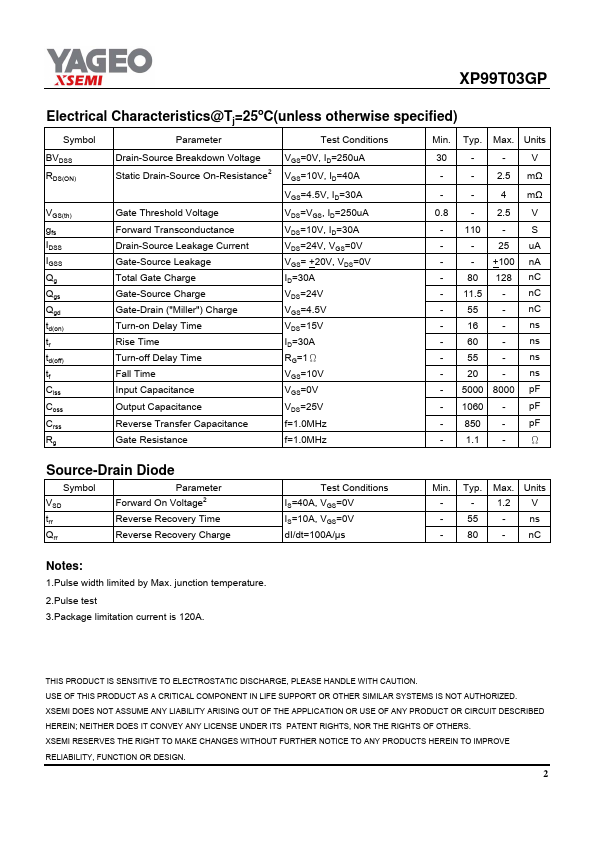

XP99T03GP Datasheet Preview — Preview of XP99T03GP PDF

Datasheet Specifications

Part number: XP99T03GP
Manufacturer: YAGEO
File Size: 184.01 KB
Datasheet: XP99T03GP-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220 package is widely preferred for all commercialindustrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. BVDSS RDS(ON) ID3 30V 2.5mΩ 200A G D S TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise specifi
