YB1680 Datasheet, Converter, YOBON TECHNOLOGIES

YB1680 Features

  • Converter
  • High Efficiency : Up to 94% 1.5MHz Constant

PDF File Details

Part number:

YB1680

Manufacturer:

YOBON TECHNOLOGIES

File Size:

858.56kb

Download:

📄 Datasheet

Description:

600ma synchronous step-down converter. The YB1680 is a 1.5MHz constant frequency, slope compensated current mode PWM step-down converter. The device integrates a main switc

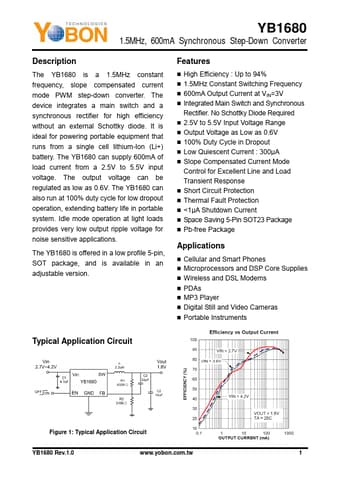

Datasheet Preview: YB1680 📥 Download PDF (858.56kb)
Page 2 of YB1680 Page 3 of YB1680

YB1680 Application

  • Applications The YB1680 is offered in a low profile 5-pin, SOT package, and is available in an adjustable version. Features
