V630ME08, V630ME08_Z OSCILLATOR

V630ME08 Description

www.DataSheet4U.com V630ME08 9939 Via Pasar * San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722 VOLTAGE CONTROLLED OSCILLATOR Rev B.

V630ME08 Features

* Frequency Range: 2190 - 2330 MHz
* Tuning Voltage: 0.5-4.5 Vdc

V630ME08 Applications

* WLAN
* Digital Radios
* Earthstations PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input Capacitance (max. ) Pushing Pu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: V630ME08, V630ME08_Z. Please refer to the document for exact specifications by model.

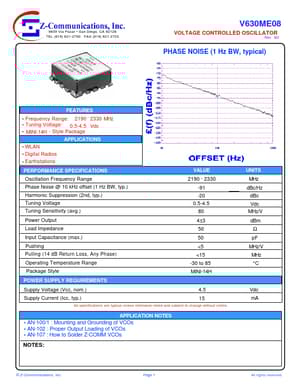

datasheet Preview Page 2

Datasheet Details

Part number
V630ME08, V630ME08_Z
Manufacturer
Z-Communications
File Size
193.62 KB
Datasheet
V630ME08_Z-Communications.pdf
Description
OSCILLATOR
Note
This datasheet PDF includes multiple part numbers: V630ME08, V630ME08_Z.
Please refer to the document for exact specifications by model.
