ZXTN2005Z Datasheet, Transistor, Zetex Semiconductors

ZXTN2005Z Features

  • Transistor
  • Extremely low equivalent on-resistance; RSAT = 25m at 6.5A
  • 5.5 amps continuous current
  • Up to 20 amps peak current
  • Very low saturation voltages

PDF File Details

Part number:

ZXTN2005Z

Manufacturer:

Zetex Semiconductors

File Size:

237.00kb

Download:

📄 Datasheet

Description:

25v npn low saturation medium power transistor. Packaged in the SOT89 outline this new low saturation 25V NPN transistor offers extremely low on state losses making it ideal for use

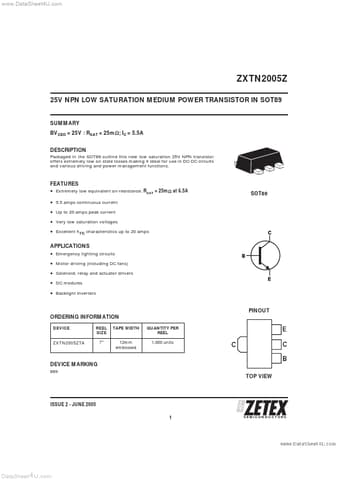

Datasheet Preview: ZXTN2005Z 📥 Download PDF (237.00kb)
Page 2 of ZXTN2005Z Page 3 of ZXTN2005Z

ZXTN2005Z Application

  • Applications
  • Emergency lighting circuits
  • Motor driving (including DC fans)
  • Solenoid, relay and actuator drivers
  • <
