ADC12DJ3200

RF-Sampling ADC

ADC12DJ3200 Features

* 1 ADC core:

* 12-bit resolution

* Up to 6.4 GSPS in single-channel mode

* Up to 3.2 GSPS in dual-channel mode

* Performance specifications:

* Noise floor (no signal, VFS = 1.0 VPP-DIFF):

* Dual-channel mode:

* 151.8 dBFS/Hz

* Si

ADC12DJ3200 General Description

The ADC12DJ3200 device is an RF-sampling, gigasample, analog-to-digital converter (ADC) that can directly sample input frequencies from DC to above 10 GHz. In dual-channel mode, the ADC12DJ3200 can sample up to 3200 MSPS and up to 6400 MSPS in single-channel mode. Programmable tradeoffs in channel c.

ADC12DJ3200 Datasheet (2.88 MB)

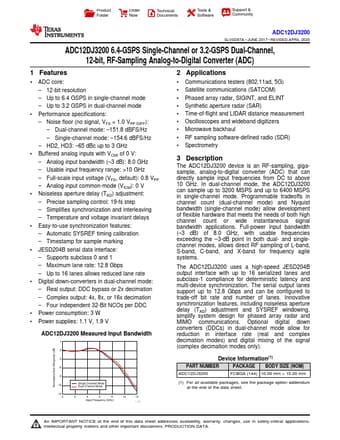

Preview of ADC12DJ3200 PDF

Datasheet Details

Part number:

ADC12DJ3200

Manufacturer:

Texas Instruments ↗

File Size:

2.88 MB

Description:

Rf-sampling adc.
Product Folder Order Now Technical Documents Tools & Software Support & Community ADC12DJ3200 SLVSD97A

* JUNE 2017

* REVISED APRI.
