ADC12DJ5200RF

RF-Sampling Analog-to-Digital Converter

ADC12DJ5200RF Features

* ADC core:

* 12-bit resolution

* Up to 10.4 GSPS in single-channel mode

* Up to 5.2 GSPS in dual-channel mode

* Performance specifications:

* Noise floor (

* 20 dBFS, VFS = 1 VPP-DIFF):

* Dual-channel mode:

* 151.8 dBFS/Hz

ADC12DJ5200RF General Description

The ADC12DJ5200RF device is an RF-sampling, giga-sample, analog-to-digital converter (ADC) that can directly sample input frequencies from DC to above 10 GHz. ADC12DJ5200RF can be configured as a dual-channel, 5.2 GSPS ADC or single-channel, 10.4 GSPS ADC. Support of a useable input frequency range.

ADC12DJ5200RF Datasheet (8.32 MB)

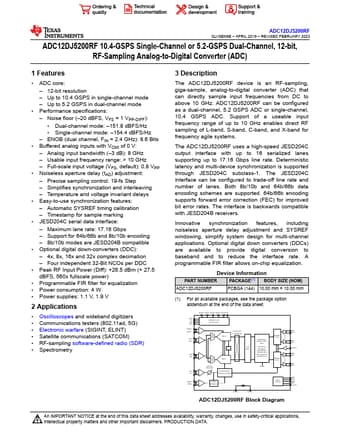

Preview of ADC12DJ5200RF PDF

Datasheet Details

Part number:

ADC12DJ5200RF

Manufacturer:

Texas Instruments ↗

File Size:

8.32 MB

Description:

Rf-sampling analog-to-digital converter.
ADC12DJ5200RF SLVSEN9E

* APRIL 2019

* REVISED FEBRUARY 2023 ADC12DJ5200RF 10.4-GSPS Single-Channel or 5.2-GSPS Dual-Channel, 12-bit, R.
