ADC12DJ3200QML-SP

RF-Sampling Analog-to-Digital Converter

ADC12DJ3200QML-SP Features

* ADC core:

* 12-Bit resolution

* Up to 6.4 GSPS in single-channel mode

* Up to 3.2 GSPS in dual-channel mode

* Noise floor (no signal, VFS = 1 VPP-DIFF):

* Dual-channel mode:

* 149.5 dBFS/Hz

* Single-channel mode:

* 152.4 dBFS/Hz

ADC12DJ3200QML-SP General Description

The ADC12DJ3200QML-SP device is an RFsampling, giga-sample, analog-to-digital converter (ADC) that can directly sample input frequencies from dc to above 10 GHz. In dual-channel mode, the ADC12DJ3200QML-SP can sample up to 3200 MSPS. In single-channel mode, the device can sample up to 6400 MSPS. Pr.

ADC12DJ3200QML-SP Datasheet (3.84 MB)

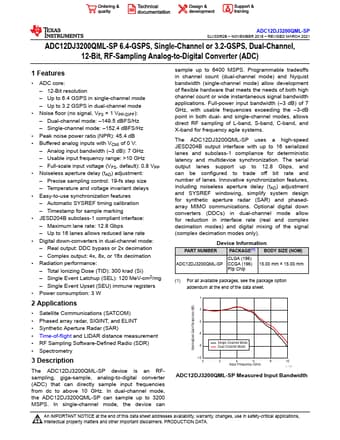

Preview of ADC12DJ3200QML-SP PDF

Datasheet Details

Part number:

ADC12DJ3200QML-SP

Manufacturer:

Texas Instruments ↗

File Size:

3.84 MB

Description:

Rf-sampling analog-to-digital converter.
ADC12DJ3200QML-SP SLVSDR2B

* NOVEMBER 2018

* REVISED MARCH 2021 ADC12DJ3200QML-SP 6.4-GSPS, Single-Channel or 3.2-GSPS, Dual-Channel, .
