ADC12DJ5200-SP

RF-Sampling Analog-to-Digital Converter

ADC12DJ5200-SP Features

* Radiation Tolerance:

* Total Ionizing Dose (TID): 300 krad (Si)

* Single Event Latchup (SEL): 120 MeV-cm2/mg

* Single Event Upset (SEU) immune registers

* ADC core:

* 12-bit resolution

* Up to 10.4 GSPS in single-channel mode

* Up to

ADC12DJ5200-SP General Description

The ADC12DJ5200-SP device is an RF-sampling, giga-sample, analog-to-digital converter (ADC) that can directly sample input frequencies from DC to above 10 GHz. ADC12DJ5200-SP can be configured as a dual-channel, 5.2 GSPS ADC or single-channel, 10.4 GSPS ADC. Support of a useable input frequency ran.

ADC12DJ5200-SP Datasheet (7.50 MB)

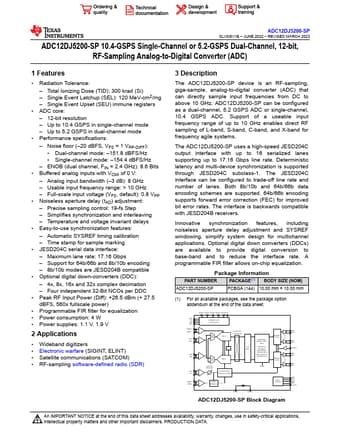

Preview of ADC12DJ5200-SP PDF

Datasheet Details

Part number:

ADC12DJ5200-SP

Manufacturer:

Texas Instruments ↗

File Size:

7.50 MB

Description:

Rf-sampling analog-to-digital converter.
ADC12DJ5200-SP SLVSGV1B

* JUNE 2022

* REVISED MARCH 2023 ADC12DJ5200-SP 10.4-GSPS Single-Channel or 5.2-GSPS Dual-Channel, 12-bit, RF-.
