DS90LV017A

LVDS Single High Speed Differential Driver

DS90LV017A Features

* 1

* 2 >600 Mbps (300 MHz) Switching Rates

* 0.3 ns Typical Differential Skew

* 0.7 ns Maximum Differential Skew

* 1.5 ns Maximum Propagation Delay

* 3.3V Power Supply Design

* ±355 mV Differential Signaling

* Low Power Dissipation (23 mW @ 3.3V

DS90LV017A General Description

The DS90LV017A is a single LVDS driver device optimized for high data rate and low power applications. The DS90LV017A is a current mode driver allowing power dissipation to remain low even at high frequency. In addition, the short circuit fault current is also minimized. The device is designed to su.

DS90LV017A Datasheet (673.47 KB)

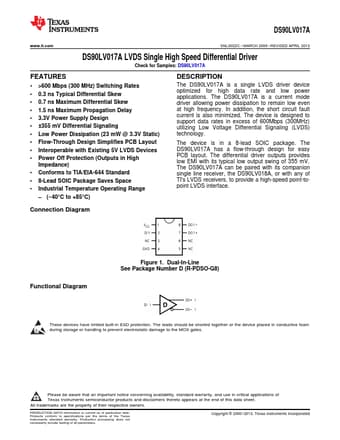

Preview of DS90LV017A PDF

Datasheet Details

Part number:

DS90LV017A

Manufacturer:

Texas Instruments ↗

File Size:

673.47 KB

Description:

Lvds single high speed differential driver.
DS90LV017A www.ti.com SNLS022C

* MARCH 2000

* REVISED APRIL 2013 DS90LV017A LVDS Single High Speed Differential Driver Check for Sa.
