LMK00101

Ultra-low Jitter LVCMOS Fanout Buffer/Level Translator

LMK00101 Features

* 1

* 2 10 LVCMOS/LVTTL Outputs, DC to 200 MHz

* Universal Input

* LVPECL

* LVDS

* HCSL

* SSTL

* LVCMOS / LVTTL

* Crystal Oscillator Interface

* Crystal Input Frequency: 10 to 40 MHz

* Output Skew: 6 ps

* Additive P

LMK00101 General Description

The LMK00101 is a high performance, low noise LVCMOS fanout buffer which can distribute 10 ultralow jitter clocks from a differential, single ended, or crystal input. The LMK00101 supports synchronous output enable for glitch free operation. The ultra lowskew, low-jitter, and high PSRR make this buf.

LMK00101 Datasheet (469.19 KB)

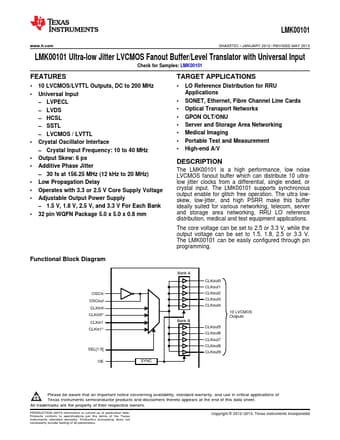

Preview of LMK00101 PDF

Datasheet Details

Part number:

LMK00101

Manufacturer:

Texas Instruments ↗

File Size:

469.19 KB

Description:

Ultra-low jitter lvcmos fanout buffer/level translator.
LMK00101 www.ti.com SNAS572C

* JANUARY 2012

* REVISED MAY 2013 LMK00101 Ultra-low Jitter LVCMOS Fanout Buffer/Level Translator with.
