LMK00304

3-GHz 4-Output Ultra-Low Additive Jitter Differential Clock Buffer/Level Translator

LMK00304 Features

* 1 3:1 Input Multiplexer

* Two Universal Inputs Operate up to 3.1 GHz and Accept LVPECL, LVDS, CML, SSTL, HSTL, HCSL, or Single-Ended Clocks

* One Crystal Input Accepts a 10-MHz to 40MHz Crystal or Single-Ended Clock

* Two Banks With 2 Differential Outputs Each

LMK00304 General Description

The LMK00304 is a 3-GHz 4-output differential fanout buffer intended for high-frequency, low-jitter clock/data distribution and level translation. The input clock can be selected from two universal inputs or one crystal input. The selected input clock is distributed to two banks of 2 differential ou.

LMK00304 Datasheet (1.99 MB)

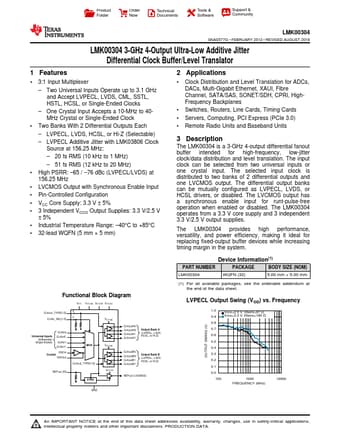

Preview of LMK00304 PDF

Datasheet Details

Part number:

LMK00304

Manufacturer:

Texas Instruments ↗

File Size:

1.99 MB

Description:

3-ghz 4-output ultra-low additive jitter differential clock buffer/level translator.
