LMK00338 - 8-Output PCIe Gen1/Gen2/Gen3/Gen4/Gen5 Clock Buffer and Level Translator

Datasheet Summary

Description

The LMK00338 device is an 8-output PCIe Gen1/ Gen2/Gen3/Gen4/Gen5 fanout buffer intended for high-frequency, low-jitter clock, data distribution, and level translation.

The input clock can be selected from two universal inputs or one crystal input.

Features

  • 3:1 Input Multiplexer.
  • Two Universal Inputs Operate up to 400 MHz and Accept LVPECL, LVDS, CML, SSTL, HSTL, HCSL, or Single-Ended Clocks.
  • One Crystal Input Accepts a 10-MHz to 40-MHz Crystal or Single-Ended Clock.
  • Two Banks With 4 Differential Outputs Each.
  • HCSL, or Hi-Z (Selectable per Bank).
  • Additive RMS Phase Jitter for PCIe Gen5 at 100 MHz:.
  • 15 fs RMS (Typical).
  • 72 dBc at 156.25 MHz.
  • LVCMOS Output With.

📥 Download Datasheet

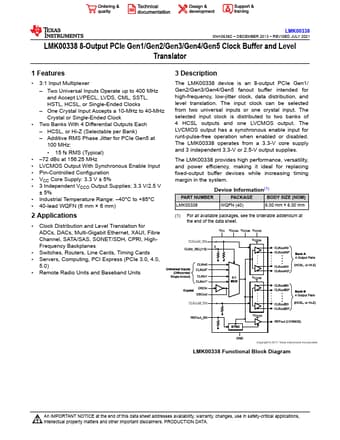

Datasheet preview – LMK00338

Datasheet Details

Part number LMK00338
Manufacturer Texas Instruments
File Size 1.97 MB
Description 8-Output PCIe Gen1/Gen2/Gen3/Gen4/Gen5 Clock Buffer and Level Translator
Datasheet download datasheet LMK00338 Datasheet
Additional preview pages of the LMK00338 datasheet.
