LMK00301 Datasheet, Translator, Texas Instruments

LMK00301 Features

  • Translator
  • 3:1 input multiplexer
      – Two universal inputs operate up to 3.1 ghz and accept lvpecl, lvds, cml, sstl, hstl, hcsl, or single-ended clocks
      – One

PDF File Details

Part number:

LMK00301

Manufacturer:

Texas Instruments ↗

File Size:

2.13MB

Download:

📄 Datasheet

Description:

3-ghz 10-output ultra-low additive jitter differential clock buffer and level translator. The LMK00301 is a 3-GHz, 10-output differential fanout buffer intended for high-frequency, low-jitter clock and data distribution, a

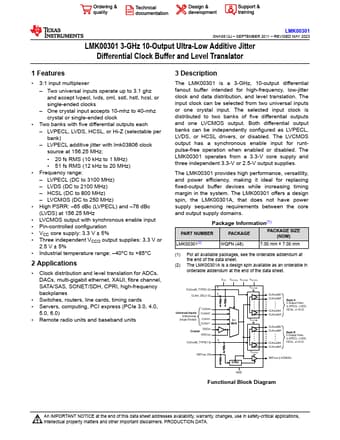

Datasheet Preview: LMK00301 📥 Download PDF (2.13MB)
Page 2 of LMK00301 Page 3 of LMK00301

LMK00301 Application

  • Applications
  • Clock distribution and level translation for ADCs, DACs, multi-gigabit ethernet, XAUI, fibre channel, SATA/SAS, SONET/SDH, CP
