LMK00308

3-GHz 8-Output Ultra-Low Additive Jitter Differential Clock Buffer/Level Translator

LMK00308 Features

* 1 3:1 Input Multiplexer:

* Two Universal Inputs Operate up to 3.1 GHz and Accept LVPECL, LVDS, CML, SSTL, HSTL, HCSL, or Single-Ended Clocks

* One Crystal Input Accepts a 10 to 40 MHz Crystal or Single-Ended Clock

* Two Banks with 4 Differential Outputs Each:

LMK00308 General Description

The LMK00308 is a 3-GHz, 8-output differential fanout buffer intended for high-frequency, low-jitter clock/data distribution and level translation. The input clock can be selected from two universal inputs or one crystal input. The selected input clock is distributed to two banks of 4 differential o.

LMK00308 Datasheet (2.02 MB)

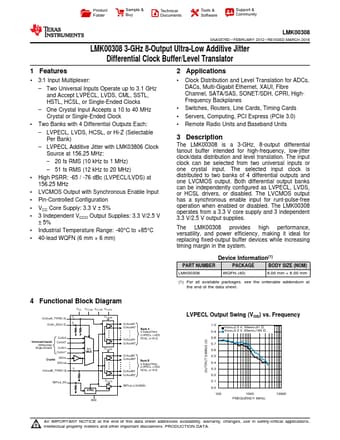

Preview of LMK00308 PDF

Datasheet Details

Part number:

LMK00308

Manufacturer:

Texas Instruments ↗

File Size:

2.02 MB

Description:

3-ghz 8-output ultra-low additive jitter differential clock buffer/level translator.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LMK00308 SNAS576D

* FEBRUARY 2012

* REVISED .
