LMK00334

Four-Output Clock Buffer and Level Translator

LMK00334 Features

* 3:1 Input multiplexer

* Two universal inputs operate up to 400 MHz and accept LVPECL, LVDS, CML, SSTL, HSTL, HCSL, or single-ended clocks

* One crystal input accepts a 10- to 40-MHz crystal or single-ended clock

* Two banks with two differential outputs each

LMK00334 General Description

The LMK00334 device is a 4-output HCSL fanout buffer intended for high-frequency, low-jitter clock, data distribution, and level translation. It is capable of distributing the reference clock for ADCs, DACs, multi-gigabit ethernet, XAUI, fibre channel, SATA/SAS, SONET/SDH, CPRI, and high-frequency .

LMK00334 Datasheet (1.70 MB)

Preview of LMK00334 PDF

Datasheet Details

Part number:

LMK00334

Manufacturer:

Texas Instruments ↗

File Size:

1.70 MB

Description:

Four-output clock buffer and level translator.
LMK00334 SNAS635E

* DECEMBER 2013

* REVISED JANUARY 2022 LMK00334 Four-Output Clock Buffer and Level Translator for PCIe Gen 1 to Gen .

📁 Related Datasheet

LMK00338 - 8-Output PCIe Gen1/Gen2/Gen3/Gen4/Gen5 Clock Buffer and Level Translator (Texas Instruments)
LMK00338 SNAS636C – DECEMBER 2013 – REVISED JULY 2021 LMK00338 8-Output PCIe Gen1/Gen2/Gen3/Gen4/Gen5 Clock Buffer and Level Translator 1 Features • .

LMK00301 - 3-GHz 10-Output Ultra-Low Additive Jitter Differential Clock Buffer and Level Translator (Texas Instruments)
LMK00301 SNAS512J – SEPTEMBER 2011 – REVISED MAY 2023 LMK00301 3-GHz 10-Output Ultra-Low Additive Jitter Differential Clock Buffer and Level Translato.

LMK00304 - 3-GHz 4-Output Ultra-Low Additive Jitter Differential Clock Buffer/Level Translator (Texas Instruments)
Product Folder Order Now Technical Documents Tools & Software Support & Community LMK00304 SNAS577G – FEBRUARY 2012 – REVISED AUGUST 2018 LMK0030.

LMK00306 - 3-GHz 6-Output Ultra-Low Additive Jitter Differential Clock Buffer/Level Translator (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LMK00306 SNAS578D – FEBRUARY 2012 – REVISED MARCH 2016 LMK00.

LMK00308 - 3-GHz 8-Output Ultra-Low Additive Jitter Differential Clock Buffer/Level Translator (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LMK00308 SNAS576D – FEBRUARY 2012 – REVISED MARCH 2016 LMK00.

LMK00101 - Ultra-low Jitter LVCMOS Fanout Buffer/Level Translator (Texas Instruments)
LMK00101 .ti. SNAS572C – JANUARY 2012 – REVISED MAY 2013 LMK00101 Ultra-low Jitter LVCMOS Fanout Buffer/Level Translator with Universal Input.

LMK00105 - Ultra-Low Jitter LVCMOS Fanout Buffer and Level Translator (Texas Instruments)
Product Folder Order Now Technical Documents Tools & Software Support & Community LMK00105 SNAS579G – MARCH 2012 – REVISED DECEMBER 2014 LMK00105.

LMK00725 - Differential-to-3.3V LVPECL Fanout Buffer (Texas Instruments)
LMK00725 .ti. SNAS625A – SEPTEMBER 2013 – REVISED OCTOBER 2013 Low Skew, 1-to-5, Differential-to-3.3V LVPECL Fanout Buffer Check for Samples:.

TAGS

LMK00334 Four-Output Clock Buffer and Level Translator Texas Instruments

Image Gallery

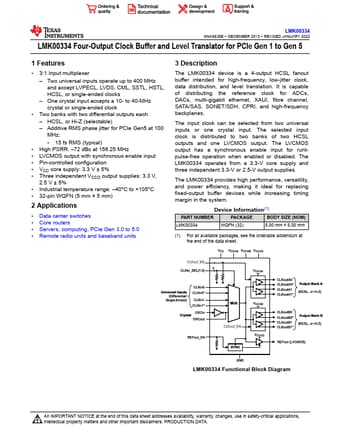

LMK00334 Datasheet Preview Page 2 LMK00334 Datasheet Preview Page 3
