LMK00105 - Ultra-Low Jitter LVCMOS Fanout Buffer and Level Translator

LMK00105 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community LMK00105 SNAS579G * MARCH 2012 * REVISED DECEMB.
The LMK00105 is a high-performance, low-noise LVCMOS fanout buffer which can distribute five ultralow jitter clocks from a differential, single-ended,.

LMK00105 Features

* 1 5 LVCMOS Outputs, DC to 200 MHz
* Universal Input
* LVPECL
* LVDS
* HCSL
* SSTL
* LVCMOS and LVTTL
* Crystal Oscillator Interface
* Crystal Input Frequency: 10 to 40 MHz
* Output Skew: 6 ps
* Additive Phase Ji

LMK00105 Applications

* The core voltage can be set to 2.5 or 3.3 V, while the output voltage can be set to 1.5, 1.8, 2.5 or 3.3 V. The LMK00105 can be easily configured through pin programming. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) LMK00105 WQFN (24) 4.00 mm × 4.00 mm (1) For all available pack

📥 Download Datasheet

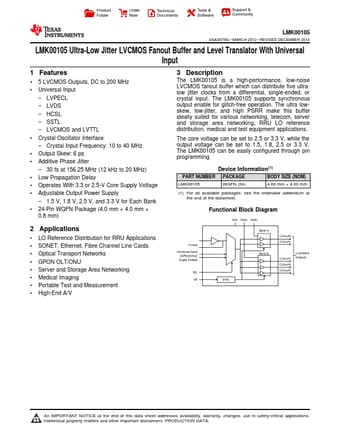

Preview of LMK00105 PDF
