SN54LS14

Hex Schmitt-Trigger Inverters

SN54LS14 Features

* 1 Operation From Very Slow Edges

* Improved Line-Receiving Characteristics

* High Noise Immunity 2 Applications

* HVAC Gateways

* Residential Ductless Air Conditioning Outdoor Units

* Robotic Controls

* Industrial Stepper Motors

* Powe

SN54LS14 General Description

Each circuit in SNx414 and SNx4LS14 functions as an inverter. However, because of the Schmitt-Trigger action, they have different input threshold levels for positive-going (VT+) and negative-going (VT *) signals. These circuits are temperature compensated and can be triggered from the slowest.

SN54LS14 Datasheet (1.40 MB)

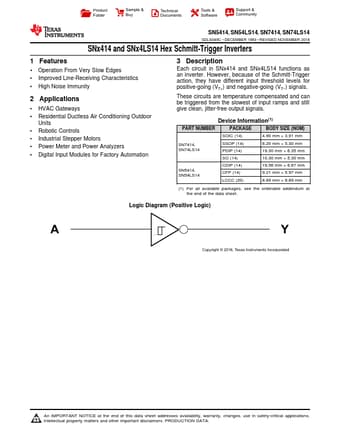

Preview of SN54LS14 PDF

Datasheet Details

Part number:

SN54LS14

Manufacturer:

Texas Instruments ↗

File Size:

1.40 MB

Description:

Hex schmitt-trigger inverters.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community SN5414, SN54LS14, SN7414, SN74LS14 SDLS049C DECEMB.
