SN54LS14J, SN5414 Datasheet - Texas Instruments

SN54LS14J Hex Schmitt-Trigger Inverter

Each circuit in SNx414 and SNx4LS14 functions as an inverter. However, because of the Schmitt-Trigger action, they have different input threshold levels for positive-going (VT+) and negative-going (VT *) signals. These circuits are temperature compensated and can be triggered from the slowest.

SN54LS14J Features

* 1 Operation From Very Slow Edges

* Improved Line-Receiving Characteristics

* High Noise Immunity 2 Applications

* HVAC Gateways

* Residential Ductless Air Conditioning Outdoor Units

* Robotic Controls

* Industrial Stepper Motors

* Powe

SN5414-etcTI.pdf

This datasheet PDF includes multiple part numbers: SN54LS14J, SN5414. Please refer to the document for exact specifications by model.

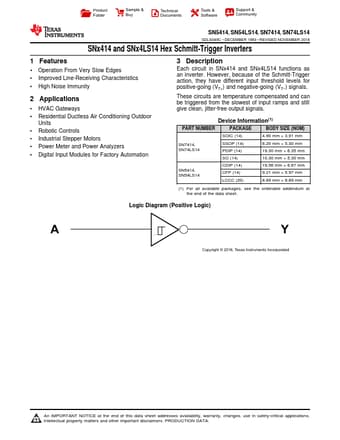

SN54LS14J Datasheet Preview Page 2 SN54LS14J Datasheet Preview Page 3

Datasheet Details

Part number:

SN54LS14J, SN5414

Manufacturer:

Texas Instruments ↗

File Size:

1.40 MB

Description:

Hex schmitt-trigger inverter.

Note:

This datasheet PDF includes multiple part numbers: SN54LS14J, SN5414.
Please refer to the document for exact specifications by model.
