SN74SSTV32852-EP Datasheet - Texas Instruments

SN74SSTV32852-EP 24-Bit To 48-Bit Registered Buffer

ORDERING INFORMATION This 24-bit to 48-bit registered buffer is designed for 2.3-V to 2.7-V VCC operation. All inputs are SSTL_2, except the LVCMOS reset (RESET) input. All outputs are SSTL_2, Class II compatible. The SN74SSTV32852 operates from a differential clock (CLK and CLK). Data are registere.

SN74SSTV32852-EP Features

* 1

* 2 Controlled Baseline

* One Assembly/Test Site, One Fabrication Site

* Extended Temperature Performance of

* 40°C to 85°C

* Enhanced Diminishing Manufacturing Sources (DMS) Support

* Enhanced Product-Change Notification

* Qualification Pedigr

SN74SSTV32852-EP-etcTI.pdf

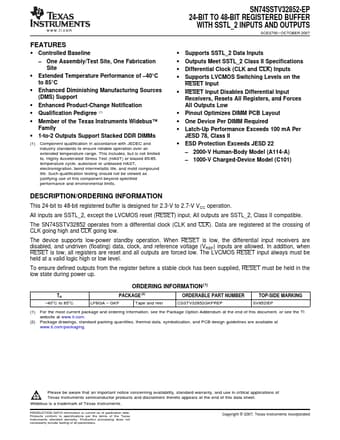

Preview of SN74SSTV32852-EP PDF
SN74SSTV32852-EP Datasheet Preview Page 2 SN74SSTV32852-EP Datasheet Preview Page 3

Datasheet Details

Part number:

SN74SSTV32852-EP

Manufacturer:

Texas Instruments ↗

File Size:

360.89 KB

Description:

24-bit to 48-bit registered buffer.
