SN74SSTVF16859 13-BIT TO 26-BIT REGISTERED BUFFER

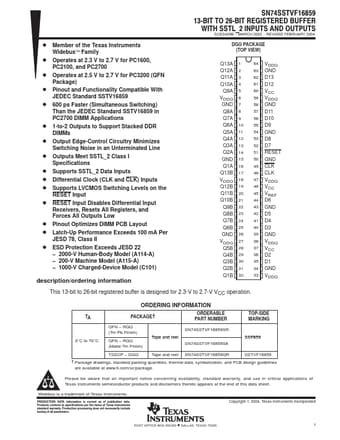

ordering information SN74SSTVF16859 13ĆBIT TO 26ĆBIT REGISTERED BUFFER WITH SSTL_2 INPUTS AND OUTPUTS SCES429B * MARCH 2003 * REVISED FEBRUARY 2004 DGG PACKAGE (TOP VIEW) Q13A 1 Q12A 2 Q11A 3 Q10A 4 Q9A 5 VDDQ 6 GND 7 Q8A 8 Q7A 9 Q6A 10 Q5A 11 Q4A 12 Q3A 13 Q2A 14 GND 15 Q1A 16 Q13.

D Member of the Texas Instruments Widebus Family D Operates at 2.3 V to 2.7 V for PC1600, PC2100, and PC2700 D Operates at 2.5 V to 2.7 V for PC3200 (QFN Package) D Pinout and Functionality Compatible With JEDEC Standard SSTV16859 D 600 ps Faster (Simultaneous Switching) Than the JEDEC Standard SSTV16859 in PC2700 DIMM Applications D 1-to-2 Outputs to Support Stacked DDR DIMMs D Output Edge-Control Circuitry Minimizes Switching Noise in an Unterminated Line D Outputs Meet SSTL_2 Class I Specifi.
