SN74SSTV32867-EP Datasheet - Texas Instruments

SN74SSTV32867-EP 26-BIT REGISTERED BUFFER

ORDERING INFORMATION This 26-bit registered buffer is designed for 2.3-V to 2.7-V VCC operation. All inputs are SSTL_2, except the LVCMOS reset (RESET) input. All outputs are edge-controlled LVCMOS circuits optimized for unterminated DIMM loads. The SN74SSTV32867-EP operates from a differential cloc.

SN74SSTV32867-EP Features

* Controlled Baseline

* One Assembly/Test Site, One Fabrication Site

* Extended Temperature Performance of

* 40°C to 85°C

* Enhanced Diminishing Manufacturing Sources (DMS) Support

* Enhanced Product Change Notification

* Qualification Pedigree

SN74SSTV32867-EP-etcTI.pdf

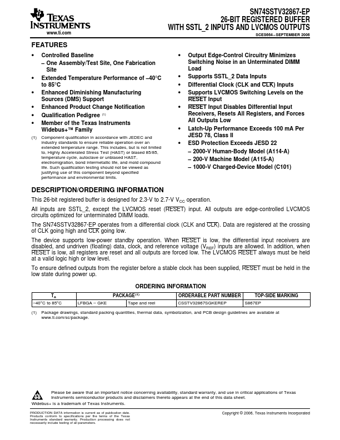

Preview of SN74SSTV32867-EP PDF
SN74SSTV32867-EP Datasheet Preview Page 2 SN74SSTV32867-EP Datasheet Preview Page 3

Datasheet Details

Part number:

SN74SSTV32867-EP

Manufacturer:

Texas Instruments ↗

File Size:

346.56 KB

Description:

26-bit registered buffer.
