SN74SSTVF16857 Datasheet - Texas Instruments

SN74SSTVF16857 - 14-BIT REGISTERED BUFFER

ordering information This 14-bit registered buffer is designed for 2.3-V to 2.7-V VCC operation.

All inputs are SSTL_2, except the LVCMOS reset (RESET) input.

All outputs are edge-controlled circuits optimized for unterminated DIMM loads and meet SSTL_2 Class I specifications.

The SN74SSTVF16857 ope

D Member of the Texas Instruments Widebus Family D Operates at 2.3 V to 2.7 V for PC1600, PC2100, and PC2700; 2.5 V to 2.7 V for PC3200 D Pinout and Functionality Compatible With JEDEC Standard SSTV16857 D 600 ps Faster (Simultaneous Switching) Than JEDEC Standard SSTV16857 in PC2700 DIMM Applications D Output Edge-Control Circuitry Minimizes Switching Noise in Unterminated DIMM Load D Outputs Meet SSTL_2 Class I Specifications D Supports SSTL_2 Data Inputs D Differential Clock (CLK and CLK) In

SN74SSTVF16857-etcTI.pdf

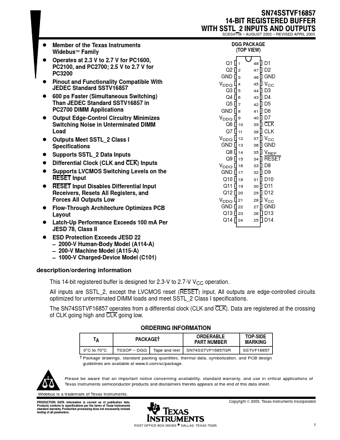

Preview of SN74SSTVF16857 PDF
SN74SSTVF16857 Datasheet Preview Page 2 SN74SSTVF16857 Datasheet Preview Page 3

Datasheet Details

Part number:

SN74SSTVF16857

Manufacturer:

Texas Instruments ↗

File Size:

960.59 KB

Description:

14-bit registered buffer.
