TPS22913B

Low On Resistance Load Switch

TPS22913B Features

* 1 Integrated Single Load Switch

* Four Pin Wafer-Chip-Scale Package (Nom)

* 0.9 mm × 0.9 mm, 0.5-mm Pitch, 0.5-mm Height (YZV)

* Input Voltage Range: 1.4 V to 5.5 V

* Low ON-Resistance

* rON = 60 mΩ at VIN = 5 V

* rON = 61 mΩ at VIN = 3.3 V

TPS22913B General Description

The TPS22910A, TPS22912C, and TPS22913B/C are small, low rON load switches with controlled turn on. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.4 V to 5.5 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with l.

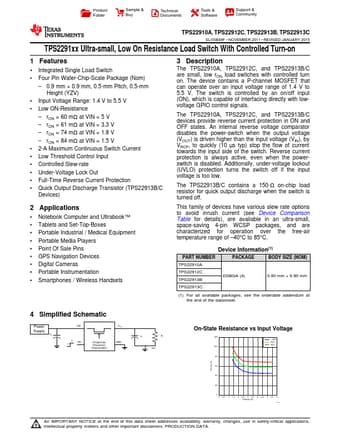

TPS22913B Datasheet (1.43 MB)

Preview of TPS22913B PDF

Datasheet Details

Part number:

TPS22913B

Manufacturer:

Texas Instruments ↗

File Size:

1.43 MB

Description:

Low on resistance load switch.
