TPS22913C, TPS22910A - Low On Resistance Load Switch

Texas Instruments

📥 Download Datasheet

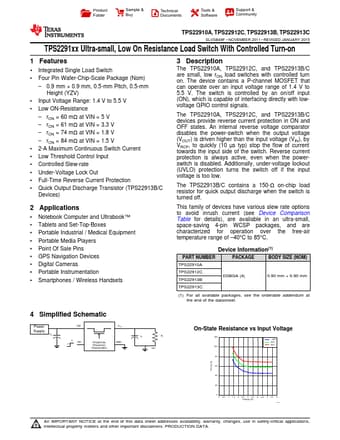

TPS22913C Datasheet Preview — This datasheet PDF includes multiple part numbers: TPS22913C, TPS22910A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPS22913C, TPS22910A
Manufacturer	Texas Instruments ↗
File Size	1.43 MB
Description	Low On Resistance Load Switch
Datasheet	TPS22910A-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TPS22913C, TPS22910A. Please refer to the document for exact specifications by model.

TPS22913C Product details

Description

The TPS22910A, TPS22912C, and TPS22913B/C are small, low rON load switches with controlled turn on.

Features

1 Integrated Single Load Switch.
Four Pin Wafer-Chip-Scale Package (Nom).
0.9 mm × 0.9 mm, 0.5-mm Pitch, 0.5-mm Height (YZV).
Input Voltage Range: 1.4 V to 5.5 V.
Low ON-Resistance.
rON = 60 mΩ at VIN = 5 V.
rON = 61 mΩ at VIN = 3.3 V.
rON = 74 mΩ at VIN = 1.8 V.
rON = 84 mΩ at VIN = 1.5 V.
2-A Maximum Continuous Switch Current.
Low Threshold Control Input.
Controlled Slew-rate.
U.
