TPS22914C, TPS22914B - On-Resistance Load Switch

Texas Instruments

📥 Download Datasheet

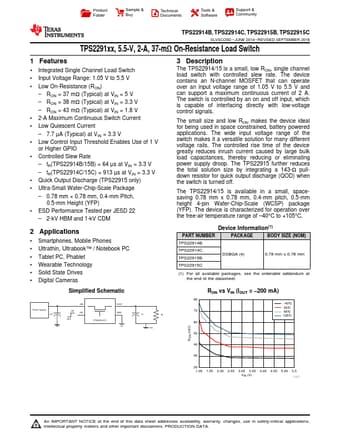

TPS22914C Datasheet Preview — This datasheet PDF includes multiple part numbers: TPS22914C, TPS22914B. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPS22914C, TPS22914B
Manufacturer	Texas Instruments ↗
File Size	1.25 MB
Description	On-Resistance Load Switch
Datasheet	TPS22914B-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TPS22914C, TPS22914B. Please refer to the document for exact specifications by model.

TPS22914C Product details

Description

The TPS22914/15 is a small, low RON, single channel load switch with controlled slew rate.

Features

1 Integrated Single Channel Load Switch.
Input Voltage Range: 1.05 V to 5.5 V.
Low On-Resistance (RON).
RON = 37 mΩ (Typical) at VIN = 5 V.
RON = 38 mΩ (Typical) at VIN = 3.3 V.
RON = 43 mΩ (Typical) at VIN = 1.8 V.
2-A Maximum Continuous Switch Current.
Low Quiescent Current.
7.7 µA (Typical) at VIN = 3.3 V.
Low Control Input Threshold Enables Use of 1 V or Higher GPIO.
Controlled Slew Rate.
