TPS22914B

On-Resistance Load Switch

TPS22914B Features

* 1 Integrated Single Channel Load Switch

* Input Voltage Range: 1.05 V to 5.5 V

* Low On-Resistance (RON)

* RON = 37 mΩ (Typical) at VIN = 5 V

* RON = 38 mΩ (Typical) at VIN = 3.3 V

* RON = 43 mΩ (Typical) at VIN = 1.8 V

* 2-A Maximum Continuou

TPS22914B General Description

The TPS22914/15 is a small, low RON, single channel load switch with controlled slew rate. The device contains an N-channel MOSFET that can operate over an input voltage range of 1.05 V to 5.5 V and can support a maximum continuous current of 2 A. The switch is controlled by an on and off input, whi.

TPS22914B Datasheet (1.25 MB)

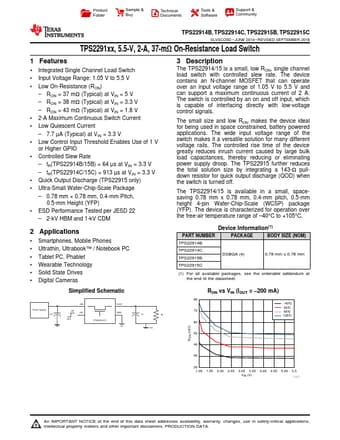

Preview of TPS22914B PDF

Datasheet Details

Part number:

TPS22914B

Manufacturer:

Texas Instruments ↗

File Size:

1.25 MB

Description:

On-resistance load switch.
