TPS22916CL

Ultra-Low Leakage Load Switch

TPS22916CL Features

* Input operating voltage range (VIN): 1 V

* 5.5 V

* Maximum continuous current (IMAX): 2 A

* ON-resistance (RON):

* 5 VIN = 60 mΩ (typ.), 100 mΩ (85°C max.)

* 1.8 VIN = 100 mΩ (typ.), 150 mΩ (85°C max.)

* 1 VIN = 200 mΩ (typ.), 325 mΩ (85°C max.

TPS22916CL General Description

The TPS22916xx is a small, single channel load switch using a low leakage P-Channel MOSFET for minimum power loss. Advanced gate control design supports operating voltages as low as 1 V with minimal increase in ON-resistance and power loss. Multiple timing options are available to support various .

TPS22916CL Datasheet (1.35 MB)

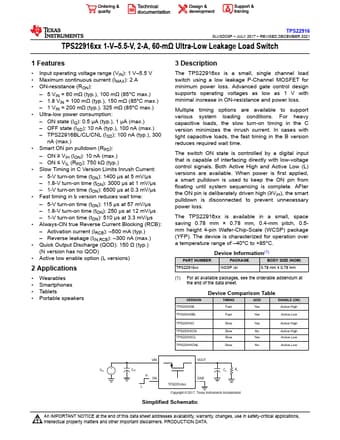

Preview of TPS22916CL PDF
