TPS22916CN, TPS22916B Datasheet - Texas Instruments

TPS22916CN Ultra-Low Leakage Load Switch

The TPS22916xx is a small, single channel load switch using a low leakage P-Channel MOSFET for minimum power loss. Advanced gate control design supports operating voltages as low as 1 V with minimal increase in ON-resistance and power loss. Multiple timing options are available to support various .

TPS22916CN Features

* Input operating voltage range (VIN): 1 V

* 5.5 V

* Maximum continuous current (IMAX): 2 A

* ON-resistance (RON):

* 5 VIN = 60 mΩ (typ.), 100 mΩ (85°C max.)

* 1.8 VIN = 100 mΩ (typ.), 150 mΩ (85°C max.)

* 1 VIN = 200 mΩ (typ.), 325 mΩ (85°C max.

TPS22916B-etcTI.pdf

This datasheet PDF includes multiple part numbers: TPS22916CN, TPS22916B. Please refer to the document for exact specifications by model.

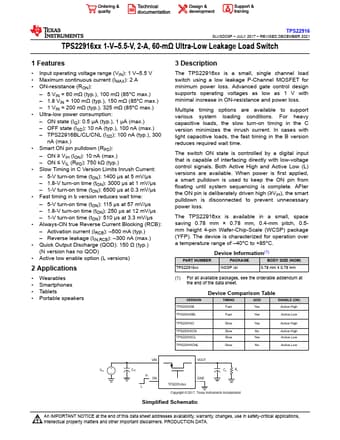

TPS22916CN Datasheet Preview Page 2 TPS22916CN Datasheet Preview Page 3
