TPS22916CNL

Ultra-Low Leakage Load Switch

TPS22916CNL Features

* Input operating voltage range (VIN): 1 V

* 5.5 V

* Maximum continuous current (IMAX): 2 A

* ON-resistance (RON):

* 5 VIN = 60 mΩ (typ.), 100 mΩ (85°C max.)

* 1.8 VIN = 100 mΩ (typ.), 150 mΩ (85°C max.)

* 1 VIN = 200 mΩ (typ.), 325 mΩ (85°C max.

TPS22916CNL General Description

The TPS22916xx is a small, single channel load switch using a low leakage P-Channel MOSFET for minimum power loss. Advanced gate control design supports operating voltages as low as 1 V with minimal increase in ON-resistance and power loss. Multiple timing options are available to support various .

TPS22916CNL Datasheet (1.35 MB)

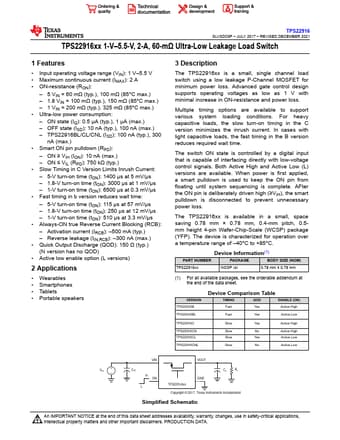

Preview of TPS22916CNL PDF

Datasheet Details

Part number:

TPS22916CNL

Manufacturer:

Texas Instruments ↗

File Size:

1.35 MB

Description:

Ultra-low leakage load switch.
TPS22916 SLVSDO5F

* JULY 2017

* REVISED DECEMBER 2021 TPS22916xx 1-V

*5.5-V, 2-A, 60-mΩ Ultra-Low Leakage Load Switch 1 Featur.
