TPS38-Q1 Datasheet - Texas Instruments

65V Dual Channel Overvoltage or Undervoltage Detector

TPS38-Q1 Features

* AEC-Q100 qualified with the following results:

* Device temperature grade 1:

* 40°C to +125°C ambient operating temperature TA

* Device HBM ESD classification level 2

* Device CDM ESD classification level C7B

* Wide supply voltage range: 2.7 V to 65 V

TPS38-Q1 General Description

The TPS38-Q1 is a 65 V input voltage detector with 1 μA IDD, 1% accuracy, and with a fast 10 μs detection time. This device can be connected directly to 12 V / 24 V automotive battery system for continuous monitoring of over (OV) or under (UV) voltage conditions; with its internal resistor divider,.

TPS38-Q1 Datasheet (4.44 MB)

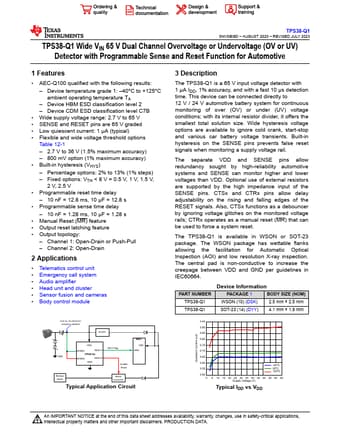

Preview of TPS38-Q1 PDF

Datasheet Details

Part number:

TPS38-Q1

Manufacturer:

Texas Instruments ↗

File Size:

4.44 MB

Description:

65v dual channel overvoltage or undervoltage detector.
TPS38-Q1 SNVSBI8D AUGUST 2020 REVISED JULY 2023 TPS38-Q1 Wide VIN 65 V Dual Channel Overvoltage or Undervoltage (OV or UV) Detecto.
