TPS3803-01-EP - VOLTAGE DETECTOR

Texas Instruments

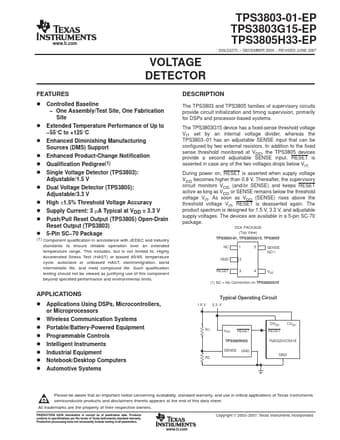

TPS3803-01-EP Datasheet Preview — Preview of TPS3803-01-EP PDF

Datasheet Details

Part number	TPS3803-01-EP
Manufacturer	Texas Instruments ↗
File Size	914.51 KB
Description	VOLTAGE DETECTOR
Datasheet	TPS3803-01-EP-etcTI.pdf

TPS3803-01-EP Product details

Description

The TPS3803 and TPS3805 families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSPs and processor-based systems. 01 has an adjustable SENSE input that can be configured by two external resistors.In addition to the fixed sense threshold monitored at VDD, the TPS3805 devices provide a second adjustable SENSE input.RESET is

Features

D Controlled Baseline.
One Assembly/Test Site, One Fabrication Site D Extended Temperature Performance of Up to.
55°C to +125°C D Enhanced Diminishing Manufacturing Sources (DMS) Support D Enhanced Product-Change Notification D Qualification Pedigree(1) D Single Voltage Detector (TPS3803): Adjustable/1.5 V D Dual Voltage Detector (TPS3805): Adjustable/3.3 V D High ±1.5% Threshold Voltage Accuracy D Supply Current: 3 µA Typical at VDD = 3.3 V D Push/Pull Reset Output (TPS3805) Op.
