TPS3803G15-EP, TPS3803-01-EP Datasheet - Texas Instruments

TPS3803G15-EP VOLTAGE DETECTOR

The TPS3803 and TPS3805 families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSPs and processor-based systems. The TPS3803G15 device has a fixed-sense threshold voltage VIT set by an internal voltage divider, whereas the TPS3803 *01 has an ad.

TPS3803G15-EP Features

* D Controlled Baseline

* One Assembly/Test Site, One Fabrication Site D Extended Temperature Performance of Up to

* 55°C to +125°C D Enhanced Diminishing Manufacturing Sources (DMS) Support D Enhanced Product-Change Notification D Qualification Pedigree(1) D Single Voltage Detector (TP

TPS3803-01-EP-etcTI.pdf

This datasheet PDF includes multiple part numbers: TPS3803G15-EP, TPS3803-01-EP. Please refer to the document for exact specifications by model.

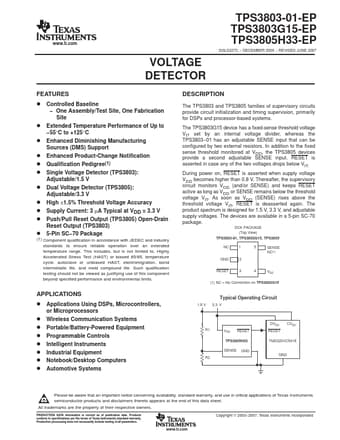

TPS3803G15-EP Datasheet Preview Page 2 TPS3803G15-EP Datasheet Preview Page 3

Datasheet Details

Part number:

TPS3803G15-EP, TPS3803-01-EP

Manufacturer:

Texas Instruments ↗

File Size:

914.51 KB

Description:

Voltage detector.

Note:

This datasheet PDF includes multiple part numbers: TPS3803G15-EP, TPS3803-01-EP.
Please refer to the document for exact specifications by model.
