TPS3803-01-Q1 Voltage Detectors

📥 Download Datasheet Datasheet Preview Page 1

Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPS3803-01-Q1 TPS3803G15-Q1, TPS3805H33-Q1 SGLS228C .
The TPS3803-Q1 and TPS3805-Q1 families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSPs and processor.

📥 Download Datasheet

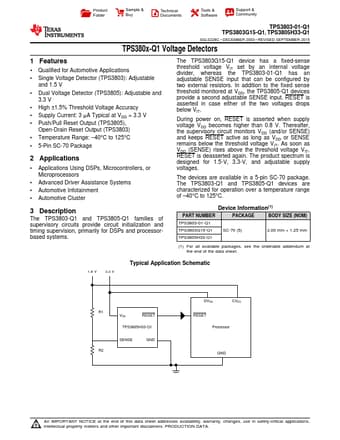

Preview of TPS3803-01-Q1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* Single Voltage Detector (TPS3803): Adjustable and 1.5 V
* Dual Voltage Detector (TPS3805): Adjustable and 3.3 V
* High ±1.5% Threshold Voltage Accuracy
* Supply Current: 3 μA Typical at VDD = 3.3 V
* Push/Pull Reset Output (TPS3805), Open-Drain Reset Output
