TPS3800

ULTRA-SMALL SUPPLY VOLTAGE SUPERVISORS

Texas Instruments

TPS3800 Features

* 1

* 2 Small, 5-Pin SC-70 (SOT-323) Package

* Supply Current of 9 mA

* Power-On Reset Generator With Fixed Delay Time

* TPS3800 = 100 ms

* TPS3801 = 200 ms

* TPS3802 = 400 ms

* Precision Supply Voltage Monitor 1.8 V, 2.5 V, 2.7 V, 3 V, 3.3 V, 5 V

TPS3800 General Description

The TPS380x family of supervisory circuits monitor supply voltages to provide circuit initialization and timing supervision, primarily for DSPs and other processor-based systems. These devices assert a push-pull RESET signal when the SENSE (adjustable version) or VDD (fixed version) drops below a pr.

TPS3800 Datasheet (789.78 KB)

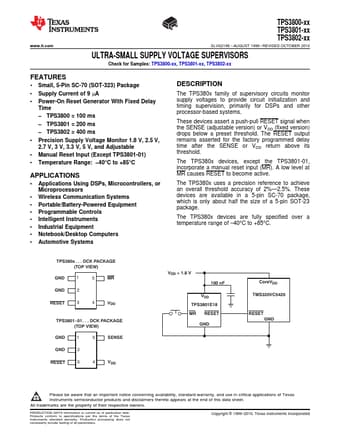

TPS3800 Datasheet Preview — Preview of TPS3800 PDF

Datasheet Details

Part number:

TPS3800

Manufacturer:

Texas Instruments ↗

File Size:

789.78 KB

Description:

Ultra-small supply voltage supervisors.
www.ti.com TPS3800-xx TPS3801-xx TPS3802-xx SLVS219E

* AUGUST 1999

* REVISED OCTOBER 2010 ULTRA-SMALL SUPPLY VOLTAGE SUPERVISORS Chec.
