TPS3803-01 - VOLTAGE DETECTOR

Texas Instruments

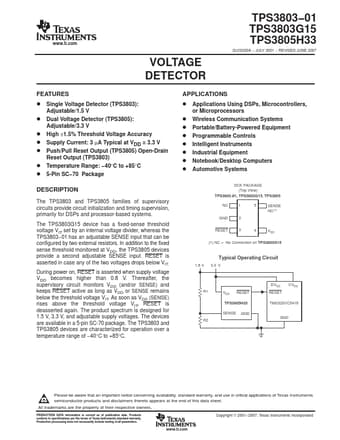

TPS3803-01 Datasheet Preview — Preview of TPS3803-01 PDF

Datasheet Details

Part number	TPS3803-01
Manufacturer	Texas Instruments ↗
File Size	909.27 KB
Description	VOLTAGE DETECTOR
Datasheet	TPS3803-01-etcTI.pdf

TPS3803-01 Product details

Description

The TPS3803 and TPS3805 families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSPs and processor-based systems. 01 has an adjustable SENSE input that can be configured by two external resistors.

Features

D Single Voltage Detector (TPS3803): Adjustable/1.5 V D Dual Voltage Detector (TPS3805): Adjustable/3.3 V D High ±1.5% Threshold Voltage Accuracy D Supply Current: 3 µA Typical at VDD = 3.3 V D Push/Pull Reset Output (TPS3805) Open-Drain Reset Output (TPS3803) D Temperature Range:.
40°C to +85°C D 5-Pin SC.
70 Package.
