TPS3803G15, TPS3803-01 - VOLTAGE DETECTOR

Texas Instruments

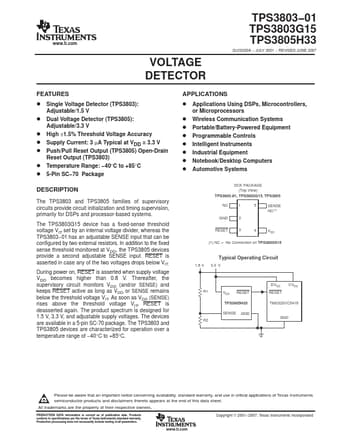

TPS3803G15 Datasheet Preview — This datasheet PDF includes multiple part numbers: TPS3803G15, TPS3803-01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TPS3803G15, TPS3803-01
Manufacturer	Texas Instruments ↗
File Size	909.27 KB
Description	VOLTAGE DETECTOR
Datasheet	TPS3803-01-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TPS3803G15, TPS3803-01. Please refer to the document for exact specifications by model.

TPS3803G15 Product details

Description

The TPS3803 and TPS3805 families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSPs and processor-based systems. 01 has an adjustable SENSE input that can be configured by two external resistors.

Features

D Single Voltage Detector (TPS3803): Adjustable/1.5 V D Dual Voltage Detector (TPS3805): Adjustable/3.3 V D High ±1.5% Threshold Voltage Accuracy D Supply Current: 3 µA Typical at VDD = 3.3 V D Push/Pull Reset Output (TPS3805) Open-Drain Reset Output (TPS3803) D Temperature Range:.
40°C to +85°C D 5-Pin SC.
70 Package.
